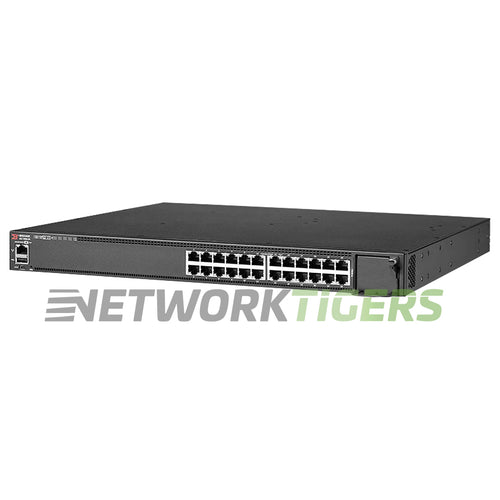

Ruckus Brocade ICX7450-24 ICX 7450 24x 1GB RJ-45 3x Exp Module Slots Switch

~~$ 262.99~~
$ 225.99

Only 2 remaining Call if you need more

Main Quantity

Shipping: OVERNIGHT OPTION

Condition: Seller refurbished

Warranty: 365 days

SKU: NSB-9060

UPC: 611968388682

The Ruckus Brocade ICX7450-24 is a high-performance switch designed for enterprise networks. With 24x 1GB RJ-45 ports and 3 expansion module slots, this device offers flexible connectivity options to meet your network requirements.

Featuring a switching capacity of up to 288 Gbps, the ICX7450-24 delivers fast data transfer rates and ensures smooth traffic flow across your network. Its forwarding rate of up to 214 Mpps allows for efficient packet processing without any bottlenecks.

With a MAC address table size of up to 32,768 entries, this switch can handle large-scale networks with ease. It supports advanced features like Layer2/Layer3 protocols and provides robust security mechanisms such as Access Control Lists (ACLs) and Port Security.

Ruckus ICX7450-24: 24-port 1 GbE switch with three modular slots for optional uplink/stacking ports. Power supplies, fans, and modules need to be ordered separately.

Network Ports : 24x 1 Gigabit Ethernet RJ-45
Uplink Ports : Uplink ports are added through the use of uplink modules - modules are not included - See "Module Slots and Options'
Management Ports : 1x Mini-USB RS232 Serial port (Mini-B plug), 1x RJ-45 Gigabit Ethernet Management port, 1x USB port
Stacking Ports : Stacking is possible through the use of ICX7400-1X40GQ Module - Module not included - See "Expansion Modules Options"
Stacking Options : It offers market-leading stacking density with up to 12 switches (576x 1 GbE and 144x 1/10 GbE ports) per stack and combines chassis-level performance with “pay as you grow” scalability of a stackable solution
Module Slots : 3x Expansion Module Slots (1x Front of Switch, 2x Rear of Switch) - Modules are NOT Included
Module Options : ICX7400-4X1GF (4x 1GB SFP), ICX7400-4X10GF (4x 10GB SFP+), ICX7400-4X10GC (4x 10GB RJ-45), ICX7400-1X40GQ (1x 40GB Uplink/Stack), ICX7400-SERVICE-MOD (Service Module)
AirFlow Direction : This switch does not include fans or PSU's. The airflow is decided by the choice of fans and PSU's. See below for options.
Fan Module Options : 2x Fan Module Slots - Not Included - Options are ICX-FAN10-E (F-B Airflow), ICX-FAN10-I (B-F Airflow)
Power Supplies Included : 2x PSU Slots - None Included
Power Supply Options : RPS16-E (PoE 1,000W AC F-B Air), RPS16-I (PoE 1,000W AC B-F Air)
Switching Capacity : 288 Gbps
Forwarding Rate : 214 Mpps
MAC Address Table Size : 32,768
Latency : 1.3 μs
DRAM and Flash : 2GB DRAM, 2GB Flash
Model Number : ICX7450-24
Part Number : ICX7450-24
Condition : Seller refurbished

More information on this Ruckus ICX7450-24.

One (1) Seller refurbished Ruckus Brocade ICX7450-24 ICX 7450 24x 1GB RJ-45 3x Exp Module Slots Switch as described above
One (1) Set of Rack Mount Brackets Included

Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
Power Cord Not Included
Power Supplies Not Included
Fan Modules Not Included
Network Modules Not Included
