The NEW Ruckus ICX7550-48ZP switch features 36 PoE+ RJ45 ports with 2.5GB each, 12 copper ports at 10GB, and two QSFP28 ports at 100 GB. It offers a robust PoE budget ranging from 1666W to 2000W depending on voltage input, ensuring reliable power distribution for connected devices.
With a switching capacity of 1,020Gbps and a forwarding rate of up to 759Mpps, this switch can handle high data traffic efficiently. The MAC address table size varies between 16,000 and 114,000 entries based on the configuration profiles selected.
High-speed connectivity and ample power supply make the Ruckus ICX7550-48ZP optimal for demanding networking environments requiring scalable performance capabilities.

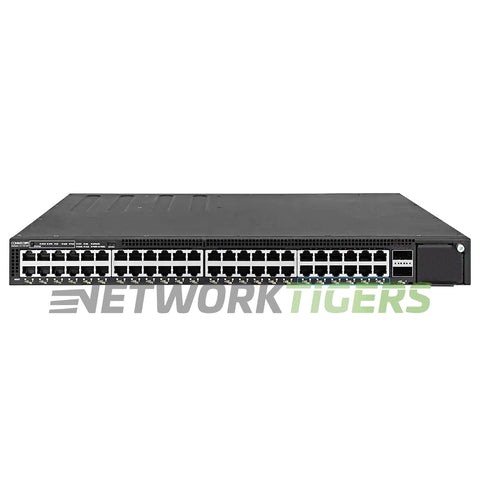

NEW Ruckus ICX7550-48ZP 36x 2.5GB PoE+ RJ45 12x 10GB Copper 2x QSFP28 Switch
- Network Ports : 36x 2.5 Gigabit Ethernet PoE+ RJ45, 12x 10 Gigabit Ethernet PoE+ RJ45
- Uplink Ports : 2x 100 Gigabit Ethernet QSFP28
- Management Ports : 1x Out of Band Management RJ45, 1x USB Type C, 1x RJ45 Console, 1x USB Type A
- Stacking Ports : Uplink ports act as stacking ports.
- Stacking Density : 12 Switches
- Aggregate Stacking Bandwidth : 960 Gbps
- Module Slots : 1x Expansion Module Slots - Module not included - ordered separately
- Module Options : ICX7650-1X100GQ (1-port 100GB QSFP28), ICX7650-2X40GQ (2-port 40GB QSFP+), ICX7650-4X10GF (4-port 1/10GB SFP+)
- Packet Buffer : 8 MB
- VLAN's : 4095
- Fan Module Options : 3x Hot-Swap Fan Slots (N+1 redundancy) - Fans not included - ordered separately - Options are ICX-FAN12-E (Front-Back), ICX-FAN12-I (Back-Front)
- Power Supplies Included : 2x 400W AC PSU Slots - PSU's ordered separately
- Power Supply Options : Options are RPS21-E (Front-Back), RPS21-I (Back-Front)
- PoE Budget : 1666 W (100-180V) 2000 W (180-240V)
- Switching Capacity : 1,020 Gbps
- Forwarding Rate : 759 Mpps
- MAC Address Table Size : 16,000 (profile1), 114,000 (profile2), 32,000 (profile3)
- DRAM and Flash : 4 GB DRAM, 4 GB Flash
- Model Number : ICX7550-48ZP
- Part Number : ICX7550-48ZP
- Condition : New
- One (1) NEW Ruckus ICX7550-48ZP 36x 2.5GB PoE+ RJ45 12x 10GB Copper 2x QSFP28 Switch as described above
