Ruckus Brocade ICX7650-48F-E 24x 1GB SFP 24x 10GB SFP+ 4x 40GB QSFP+ F-B Switch

Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-6284

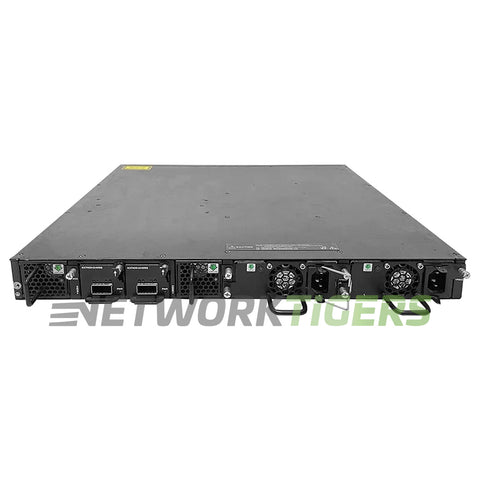

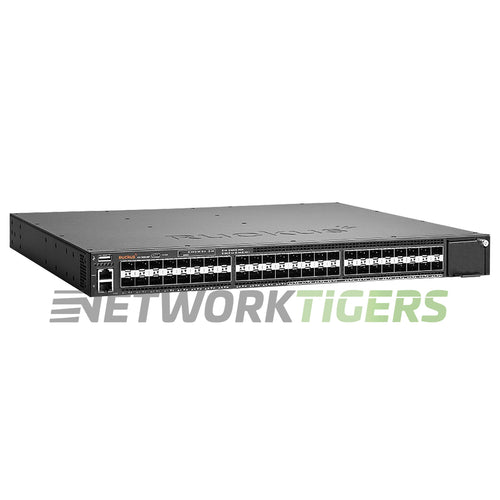

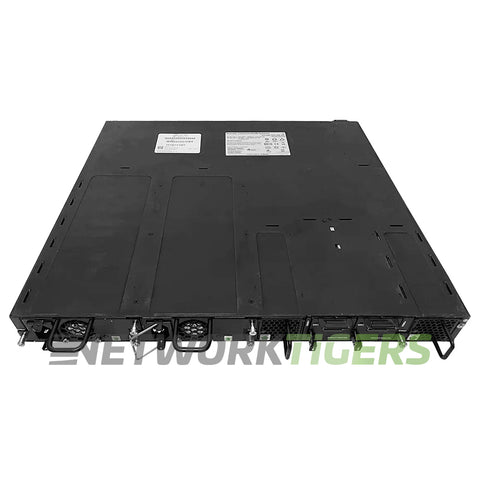

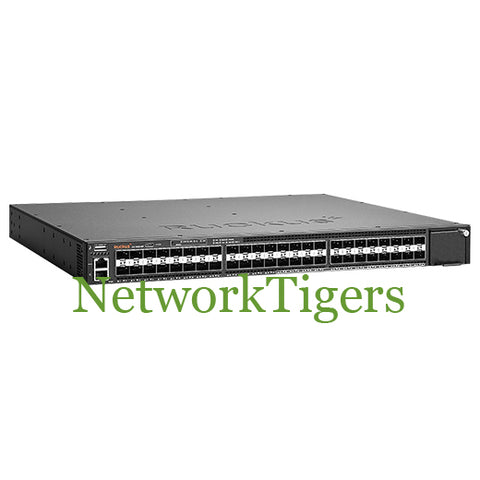

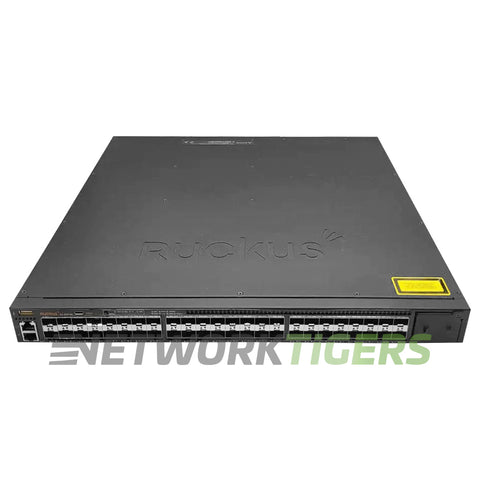

ICX7650-48F-E Ruckus Switch: NetworkTigers offers this Switch. This Ruckus ICX7650-48F-E Switch we provide is tech tested. We can overnight this Ruckus ICX7650-48F-E Switch to your location.

The Ruckus ICX7650-48F-E is a member of the ICX 7650 Series of network switches - previously Brocade. The Ruckus ICX 7650 Series is a collection of high performance multigigabit access and aggregation switches with 100 GbE support.

Ruckus ICX7650-48F-E: 48-port; 24-port 1/10GbE SFP+, 24-port 1 GbE SFP, 4xQSFP (either 2x100G or 4x40G active), modular slot. fiber switch bundle includes one 250W AC power supply and one fan, front to back airflow, port modules sold separately.


  • Network Ports : 24x 1 Gigabit Ethernet SFP, 24x 10 Gigabit Ethernet SFP+
  • Uplink Ports : 4x 40 Gigabit Ethernet QSFP+ (either 2x100G or 4x40G active)
  • Management Ports : 1x Out of Band Management RJ-45, 1x Serial Console RJ-45, 1x USB Type C, 1x USB Type A
  • Aggregated stacking bandwidth (data rate, full duplex) : 2.4 Tbps
  • Module Slots and Options : 1x Expansion Module Slot - Modules not included. (One slot for 2x40G or 4x10G front facing module)
  • Fan Modules AirFlow Direction : 2x Fan Module Slots - 1x Fan Module Included - Front to Back Airflow
  • Power Supplies Included : 2x PSU Slots - 1x 250W PSU Included
  • Switching Capacity : 1.128 Tbps
  • Forwarding Rate : 839 Mpps
  • MAC Address Table Size : 80,000
  • Rack Mounts : Included (1-RU)
  • Model Number : ICX7650-48F-E
  • Part Number : ICX7650-48F-E
  • Condition : Seller refurbished


  • One (1) Seller Refurbished Ruckus Brocade ICX7650-48F-E 24x 1GB SFP 24x 10GB SFP+ 4x 40GB QSFP+ F-B Switch as described above
  • One (1) Power Cord Included
  • One (1) AC Power Supply Included
  • One (1) Fan Module Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's web site or on the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
  • Network Modules Not Included
