Ruckus Brocade ICX7650-48F-E2 24x 1GB SFP 24x 10GB SFP+ 4x QSFP+ F-B Air Switch

X

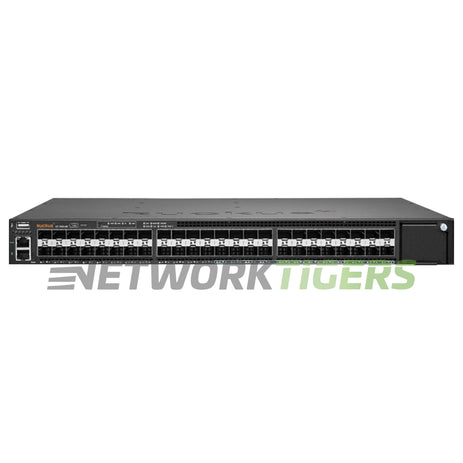

Ruckus Brocade ICX7650-48F-E2 24x 1GB SFP 24x 10GB SFP+ 4x QSFP+ F-B Air Switch

Product Overview

ICX7650-48F-E2 Ruckus Switch: NetworkTigers offers this Switch. This Ruckus ICX7650-48F-E2 Switch we resell is tech tested. We can overnight this Ruckus ICX7650-48F-E2 Switch to your site.

The Ruckus ICX7650-48F-E2 is a member of the ICX 7650 Series of network switches - previously Brocade. The Ruckus ICX 7650 Series is a collection of high performance multigigabit access and aggregation switches with 100 GbE support.

Ruckus ICX7650-48F-E2: 48-port; 24-port 1/10GbE SFP+, 24-port 1 GbE SFP, 4xQSFP (either 2x100G or 4x40G active), modular slot fiber switch bundle includes two 250W AC power supplies and two fans, front to back airflow, port modules sold separately.



Specifications

  • Network Ports : 24x 1 Gigabit Ethernet SFP, 24x 10 Gigabit Ethernet SFP+
  • Uplink Ports : 4x 40 Gigabit Ethernet QSFP+ (either 2x100G or 4x40G active)
  • Management Ports : 1x Out of Band Management RJ-45, 1x Serial Console RJ-45, 1x USB Type C, 1x USB Type A
  • Aggregated stacking bandwidth (data rate, full duplex) : 2.4 Tbps
  • Module Slots and Options : 1x Expansion Module Slot - Modules not included. (One slot for 2x40G or 4x10G front facing module)
  • Fan Modules AirFlow Direction : 2x Fan Module Slots - 1x Fan Module Included - Front to Back Airflow
  • Power Supplies Included : 2x PSU Slots - 1x 250W PSU Included
  • Switching Capacity : 1.128 Tbps
  • Forwarding Rate : 839 Mpps
  • MAC Address Table Size : 80,000
  • Rack Mounts : Included (1-RU)
  • Model Number : ICX7650-48F-E2
  • Part Number : ICX7650-48F-E2
  • Condition : Seller refurbished

Included

  • One (1) Seller refurbished Ruckus Brocade ICX7650-48F-E2 24x 1GB SFP 24x 10GB SFP+ 4x QSFP+ F-B Air Switch as described above
  • Two (2) Power Cords Included
  • Two (2) AC Power Supplies Included
  • Two (2) Fan Modules Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's web site or on the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
  • Network Modules Not Included
