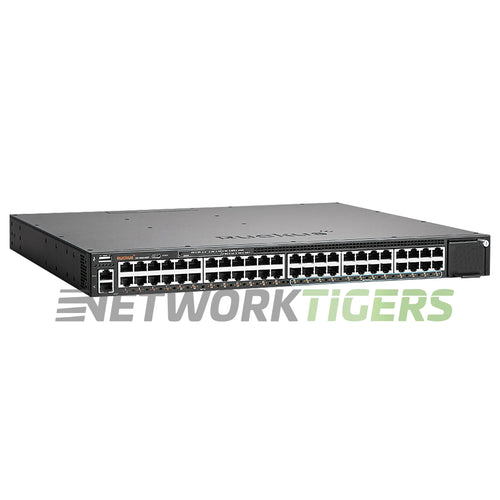

Ruckus Brocade ICX7650-48ZP-E 48x MultiGB RJ-45 4x 40GB QSFP+ F-B Airflow Switch

~~$ 5,296.99~~
$ 5,099.99

Only 2 remaining Call if you need more

Main Quantity

Shipping: OVERNIGHT OPTION

Condition: Seller refurbished

Warranty: 365 days

SKU: NSB-6282

The Ruckus Brocade ICX7650-48ZP-E is a high-performance switch designed for data-intensive networks. With 48 MultiGB RJ-45 ports and 4x 40GB QSFP+ uplink ports, it provides ample bandwidth for demanding applications.

The switch has a switching capacity of 1.128 Tbps and can handle forwarding rates of up to 839 Mpps, making it suitable for heavy traffic environments. It supports various expansion modules like the ICX7650-1X100GQ, ICX7650-2X40GQ, and ICX7650-4X10GF. With an MAC Address Table Size of 80,000 entries, this switch offers scalability and flexibility in network deployments.

Ruckus ICX7650-48ZP-E: 48-port; 24-port 100MbE/1GbE/2.5GbE/5Gb E/10GbE POH, 24-port 1 GbE switch PoE+, 4xQSFP (either 2x100G or 4x40G active), modular slot. This bundle includes 1x 1000W AC power supply and 1x fan, front-to-back airflow, port modules sold separately.

Network Ports : 24x 100MbE/1GE/2.5GE/5GE/10 Gigabit Ethernet PoE+/PoH/UPoE RJ-45, 24x 1 Gigabit Ethernet PoE+ RJ-45
Uplink Ports : 4x 40 Gigabit Ethernet QSFP+ (either 2x100G or 4x40G active)
Management Ports : 1x Out of Band Management RJ-45, 1x Serial Console RJ-45, 1x USB Type C, 1x USB Type A
Stacking Ports : Can stack on 4x 40G or 2x 100G rear facing QSFP ports - Aggregated stacking bandwidth (data rate, full duplex) = 2.4 Tbps
Stacking Cable Options : Various Ruckus 40G/100G QSFP cables
Module Slots : 1x Expansion Module Slot - Modules not included
Module Options : ICX7650-1X100GQ (1-port 100GbE QSFP28), ICX7650-2X40GQ (2-port 40GbE QSFP+), ICX7650-4X10GF (4-port 1/10GbE SFP+)
AirFlow Direction : Front-to-Back Airflow
Fan Module Options : 2x ICX-FAN12-E Fan Module Slots - 1x Fan Module Included - Front to Back Airflow
Power Supplies Included : 1x RPS16-E 1000W AC PSU Included - 2x PSU Slots - 2nd PSU ordered separately
Power Supply Options : RPS16-E, RPS16-I
PoE Budget : 1500 W
Switching Capacity : 1.128 Tbps
Forwarding Rate : 839 Mpps
MAC Address Table Size : 80,000
DRAM and Flash : 4GB DRAM
Model Number : ICX7650-48ZP-E
Part Number : ICX7650-48ZP-E
Condition : Seller refurbished

More information on this Ruckus ICX7650-48ZP-E.

One (1) Seller refurbished Ruckus Brocade ICX7650-48ZP-E 48x MultiGB RJ-45 4x 40GB QSFP+ F-B Airflow Switch as described above
One (1) Power Cord Included
One (1) AC Power Supply Included
One (1) Fan Module Included
One (1) Set of Rack Mount Brackets Included

Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
Transceiver Modules Not Included
