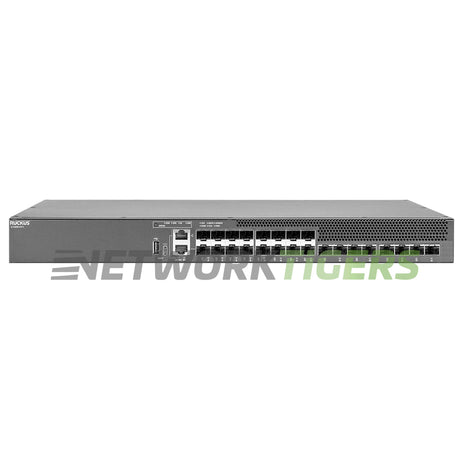

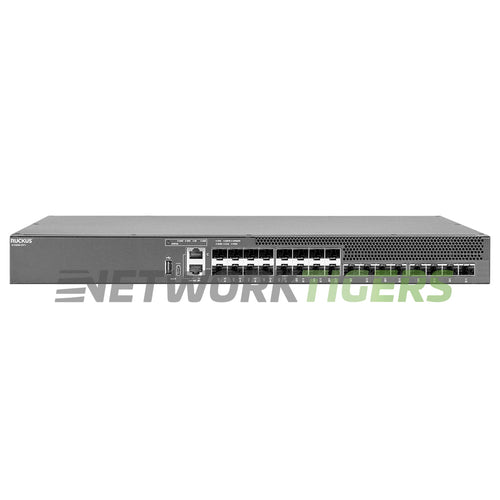

The Ruckus ICX8200-24FX is a high-performance switch with 16x 10GB SFP+ and 8x 25GB SFP28 ports. With a switching capacity of up to 720 Gbps, it delivers fast data rates for network traffic.
The MAC address table size of the switch is capable of storing up to 32K addresses, ensuring efficient routing within the network.
This switch supports VLANs allowing for segmentation and organization of networks into multiple virtual LANs. With low latency levels, data can be transmitted quickly across different devices connected to the switch.
Ruckus ICX8200-24FX: RUCKUS ICX 8200 Switch, 16×1/10GbE SFP+ ports, 8×25 GbE SFP28 stacking/uplink-ports, three-year remote TAC support. Power cord not included.
- Network Ports : 16x 10 Gigabit SFP+
- Uplink Ports : 8x 25 Gigabit SFP28
- Management Ports : 1x USB Type C, 1x RJ-45 Serial, 1x USB Type A, 1x RJ-45 Ethernet (for out of band management)
- Stacking Ports : SFP28 ports can be used as both uplink and stacking ports
- Stacking Options : Aggregated stacking bandwidth is 1.2 Tbps. Maximum switches in a stack is 12
- Packet Buffer : 4 MB
- AirFlow Direction : Front to side & back
- Power Supplies Included : 1x Internal (Integrated) AC PSU - PCUSA2 is not included
- PoE Budget : N/A
- Switching Capacity : 720 Gbps (data rate, full duplex)
- Forwarding Rate : 533 Mpps (data rate, full duplex)
- MAC Address Table Size : 32K
- VLAN's : 4,095
- Model Number : ICX8200-24FX
- Part Number : ICX8200-24FX
- Condition : Seller refurbished
- One (1) Seller refurbished Ruckus ICX8200-24FX ICX 8200 Series 16x 10GB SFP+ 8x 25GB SFP28 Switch as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer\'s website or the web. Software or firmware updates may be available through the manufacturer\'s website
