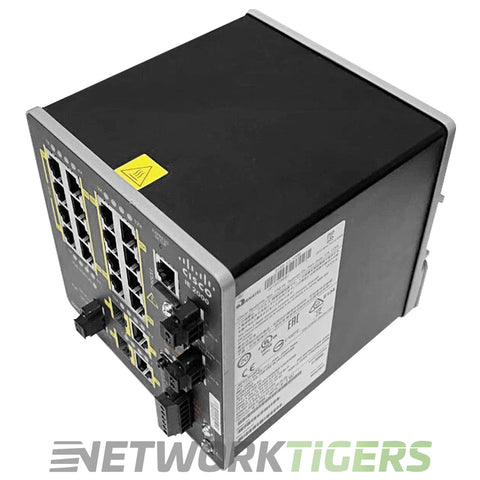

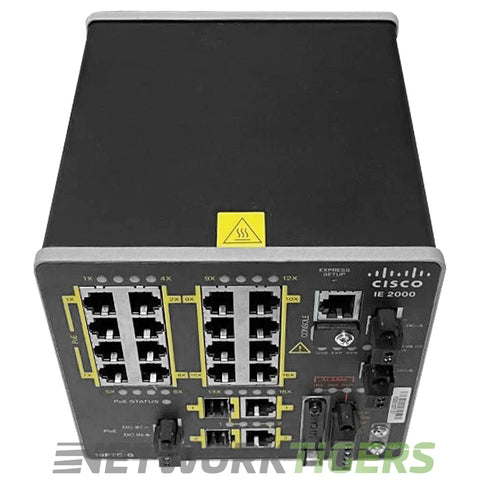

The Cisco IE-2000-16PTC-G-E is a rugged industrial Ethernet switch designed by Cisco Systems. This compact switch features 16 RJ45 interfaces and 2 Gigabit Ethernet ports with Power over Ethernet Plus (PoE+) capability, ideal for harsh industrial environments.
With a switching capacity of 7.6Gbps and a MAC Address Table Size of up to 8K entries, the IE-2000-16PTC-G-E offers reliable performance in demanding applications such as factory automation or smart grid deployments.
The line-rate throughput ensures seamless connectivity for critical network operations requiring high reliability and low-latency communication between devices on the network. Its compact form factor makes it suitable for space-constrained installations, while providing robust connectivity solutions in challenging environments where traditional switches may not be sufficient.
- Network Ports : 16x 10/100Base-T copper ports, 4 of which support PoE/PoE+
- Uplink Ports : 2x 1 Gigabit combo ports, SFP or RJ45 (Combo)
- Management Ports : Mini-USB connector, plus swappable SD flash card slot, SD-IE-1GB= sold separately, not included by default, no dedicated console port listed.
- Switch Version : LAN Base Version
- Power Options : Sold separately - PWR-IE50W-AC or AC-L (50W, no PoE), PWR-IE65W-PC-AC/DC (65W PoE), PWR-IE170W-PC-AC/DC (170W PoE), PWR-IE240W-PC-AC-L (240W), PWR-IE480W-PC-AC-L (480W)
- PoE Budget (Maximum) : Base switch draws 21-30W, per-port PoE follows 802.3af (15.4W) or 802.3at (25.5W), total budget capped by selected power supply rating.
- Switching Capacity : 7.6 Gbps
- Forwarding Rate : 5.66 Mpps, measured with 64-byte packets, line-rate at all packet sizes
- MAC Address Table Size : 8000 unicast MAC addresses
- VLANs : 1005 maximum
- DRAM : 256MB with ECC memory
- Flash : 64MB onboard flash, plus a 1GB removable SD flash card available separately (SD-IE-1GB=, not included by default)
- Rack Mount Options : STK-RACK-DINRAIL= (19-inch DIN rail mount kit), or Wallmount-IE2k-16= (wall mount kit for the 16-port downlink chassis), both sold separately
- Model Number : IE-2000-16PTC-G-E
- Part Number : IE-2000-16PTC-G-E
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco IE-2000-16PTC-G-E IE 2000 Series 16x FE PoE+ 2x 2GE RJ45 Switch as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Power Supplies Not Included
