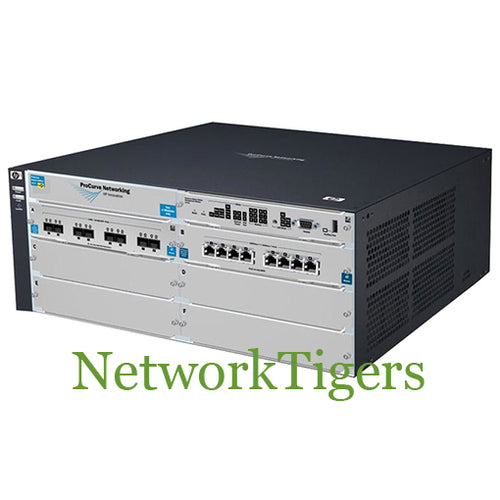

HPE J9866A 5400zl Series 8x 10GE 10G SFP+ v2 w/ Premium Software Switch - NetworkTigers

HPE J9866A 8x 10GB Copper 8x 10GB SFP+ 4x Open Mod Slots v2 Switch w/ Prem SW

Ask for quote
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-4746
UPC: 887758998618


The HPE J9866A Switch offers high-speed connectivity with eight 10GB copper ports, eight 10GB SFP+ ports, and four open module slots for flexibility. With a switching capacity of 379.2 Gbps and a forwarding rate of up to 282.1 Mpps, this switch can handle heavy network traffic efficiently.

The MAC address table size can store up to 64,000 addresses for seamless communication within the network. The switch boasts low latency levels, ensuring quick data transmission at just under three-point-seven microseconds for FIFO packets sized at sixty-four bytes. It is ideal for businesses seeking reliable networking solutions prioritizing performance and speed without compromising security or stability.

HPE J9866A: HPE 5406 8p 10GBASE-T 8p 10GbE SFP+ v2 zl Switch with Premium Software. 8 RJ45 10GbE ports (IEEE 802.3an-2006 Type 10GBASE-T). 8 open 10GbE SFP+ transceiver slots, 4 open module slots. Supports a maximum of 32 10GbE ports or 96 autosensing 10/100/1000 ports or 96 mini-GBICs, or a combination.


  • Network Ports : 8x 10 Gigabit Ethernet RJ45 (Through the use of the J9546A Module)
  • Uplink Ports : 8x 10 Gigabit Ethernet SFP+ (Through use of the J9538A Module)
  • Management Ports : 1x RS-232C DB-9 Console
  • Product Family : 5400zl Series
  • Module Slots and Options : 6x Total Expansion Modules Slots Total - 4x Open Module Slots - Included Modules are 1x J9538A (8x 10GB SFP+ v2 zl Module), 1x J9546A 8x 10GB RJ45 v2 zl Module)
  • Firmware Version : Premium Software
  • Other Expansion Module Options : J9546A, J8708A, J8707A, J9309A, J9538A, J9536A, J9535A, J9537A, J9637A, J8702A, J9308A, J8705A, J8706A, J9307A, J9534A, J9478A, J9547A, J9550A, J9549A, J9548A, J9857A, J9858A
  • Power Supplies Included : 1x J9306A 1500W PoE+ AC PSU Included - 1x Open PSU slot is available - Options for 2nd PSU are 1500W (J8713A), 875W (J8712A) - None Included
  • Switching Capacity : 379.2 Gbps
  • Forwarding Rate : up to 282.1 Mpps
  • MAC Address Table Size : 64000
  • 1000 Mb Latency : < 3.7 µs (FIFO 64-byte packets)
  • Rack Mounts : Included
  • Model Number : J9866A
  • Part Number : J9866A, J9866AR
  • Condition : Seller refurbished


  • One (1) Seller Refurbished HPE J9866A 8x 10GB Copper 8x 10GB SFP+ 4x Open Mod Slots v2 Switch w/ Prem SW as described above
  • One (1) Power Supply (J9306A) Included
  • One (1) Module (J9538A) Included
  • One (1) Module (J9546A) Included
  • One (1) Set of Rackmount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
