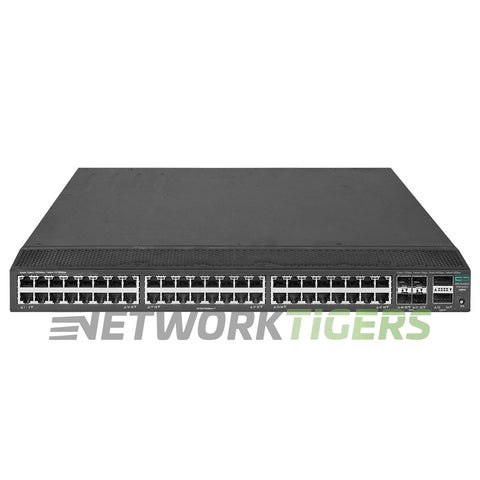

NEW HPE JG894A 5700-48XG-4XG-2QSFP+ 48x 1GB RJ-45 4x 10GB SFP+ 2x QSFP+ Switch

NEW HPE JG894A 5700-48XG-4XG-2QSFP+ 48x 1GB RJ-45 4x 10GB SFP+ 2x QSFP+ Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New

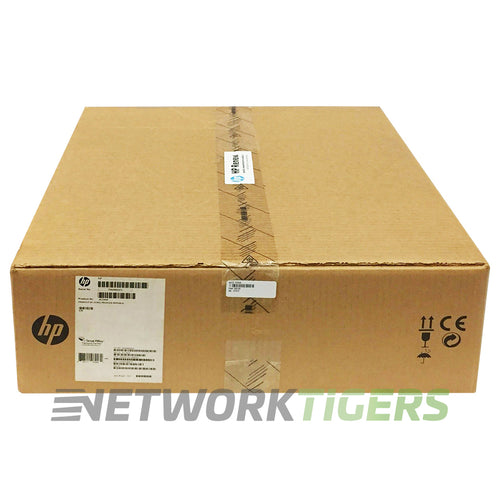

New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-2919
UPC: 888182312889

Overview

JG894A HPE 5700-48XG-4XG-2QSFP+ Switch - new: NetworkTigers offers this new Switch. This HPE JG894A 5700-48XG-4XG-2QSFP+ Switch is in stock and ready for shipment. We can overnight this HPE JG894A Switch to your data center.

The HPE JG894A is a member of the HPE FlexFabric 5700 Series of network switches. The HPE FlexFabric 5700 Series is a collection of low-latency, high-performance switches. The FlexFabric 5700 Series is part of the HPE FlexNetwork architecture’s HPE FlexFabric solution

HPE JG894A: 5700-48G-4XG-2QSFP+ 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; 4 fixed 1000/10000 SFP+ ports; 2 QSFP+.


Specifications

  • Network Ports : 48x 1 Gigabit Ethernet RJ-45
  • Uplink Ports : 4x 10 Gigabit Ethernet SFP+, 2x 40 Gigabit Ethernet QSFP+
  • Management Ports : 1x RJ-45 Serial Console, 1x RJ-45 Out of Band Management, 1x USB2.0
  • Fan Modules AirFlow Direction : Not included - 2x Fan Tray Slots - Two same-direction airflow fan trays required. Ordered separately - Options are - Front to Back - JC683A. Back to Front - JC682A.
  • Power Supplies Included : 0x PSU's - Not Included - Ordered Separately - 2x Power Supply Slots - 1x Minimum required - Options are - JG900A, JG901A
  • Switching Capacity : 336 Gbps
  • Forwarding Rate : 250 Mpps
  • MAC Address Table Size : 128,000
  • 10 Gb/s Latency : < 5 μs (64-byte packets)
  • Rack Mounts : Included (1-RU)
  • Model Number : JG894A
  • Part Number : JG894A, 5700-48XG-4XG-2QSFP+
  • Condition : New


Included

  • One (1) NEW HPE JG894A 5700-48XG-4XG-2QSFP+ 48x 1GB RJ-45 4x 10GB SFP+ 2x QSFP+ Switch as described above
