The NEW HPE JH397A FlexFabric 5940 is a high-performance switch with versatile expansion capabilities. It features two expansion module slots, allowing for flexible connectivity and increased bandwidth. With its 40GB QSFP+ ports, this switch offers fast data transmission rates.
Designed to handle demanding workloads, the switching capacity of the FlexFabric 5940 can reach up to an impressive 1440 Gbps. This enables efficient handling of network traffic without reducing performance or speed.
This switch boasts a forwarding rate of up to 1071 Mpps (million packets per second), ensuring seamless packet delivery even during peak usage. The switch has low latency levels, below one microsecond for small-sized packets (64 bytes).

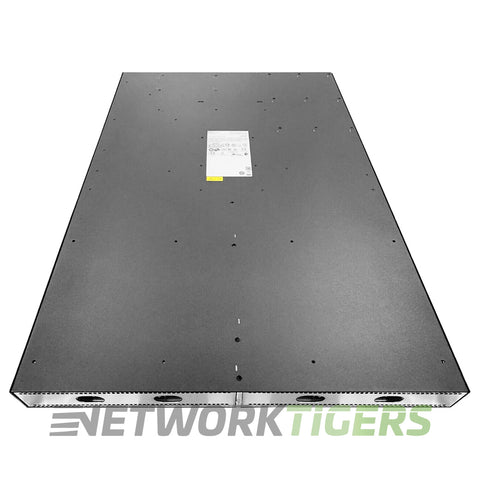

NEW HPE JH397A FlexFabric 5940 2x Expansion Module Slots 2x 40GB QSFP+ Switch
- Network Ports : See Module Slots and Options
- Uplink Ports : 2x 40 Gigabit Ethernet QSFP+
- Management Ports : 1x RJ-45 Serial Console, 1x RJ-45 Out of Band Management, 1x USB 2.0, 1x Mini USB 2.0
- Module Slots : 2x Expansion Module Slots - Supports a maximum of 18 40GB ports or 48 1/10GBASE-T ports or 48 SFP+ ports or 48 Converged ports, or a combination
- Module Options : JH180A - 24x SFP+ 2x QSFP+, JH181A - 24x SFP+ 2x QSFP+, JH409A - 2x QSFP+ 2x QSFP28, JH182A - 24x 10GB RJ-45 2x QSFP+, JH183A - 8x QSFP+, JH184A - 24 Converged Port 2x QSFP+, JH957A - 8x QSFP28
- AirFlow Direction : Depends on Fan and PSU configuration
- Fan Module Options : 2x Fan Tray Slots - ordered separately - Options are JG552A (Front-to-Back), JG553A (Back-to-Front)
- Power Supplies Included : 2x PSU Slots - 1x Min Required - ordered separately
- Power Supply Options : Options are JC680A (HPE 58x0AF 650W AC), JH336A 650W 48V NEBS DC
- PoE Budget : Packet buffer size = 16 MB
- Switching Capacity : 1440 Gbps
- Forwarding Rate : up to 1071 Mpps
- MAC Address Table Size : 288,000
- Latency : < 1 µs (64-byte packets)
- DRAM and Flash : Flash = 1GB, SDRAM = 4GB
- Model Number : JH397A
- Part Number : JH397A
- Condition : New
- One (1) NEW HPE JH397A FlexFabric 5940 2x Expansion Module Slots 2x 40GB QSFP+ Switch as described above
