NEW HPE Aruba JL076A 40x 1GB PoE+ RJ-45 8x MultiGB 1x Expansion Mod Slot Switch

NEW HPE Aruba JL076A 40x 1GB PoE+ RJ-45 8x MultiGB 1x Expansion Mod Slot Switch

Overview

JL076A HPE Switch - new: NetworkTigers offers this new Switch. This HPE JL076A Switch new in open box. We can overnight this HPE JL076A Switch to your office.

The Aruba JL076A is a member of the 3800 Series of network products. The 3800 Series provides high performance switching capabilities and resiliency for enterprises and branch office networks. Layer 3 switching with low latency.

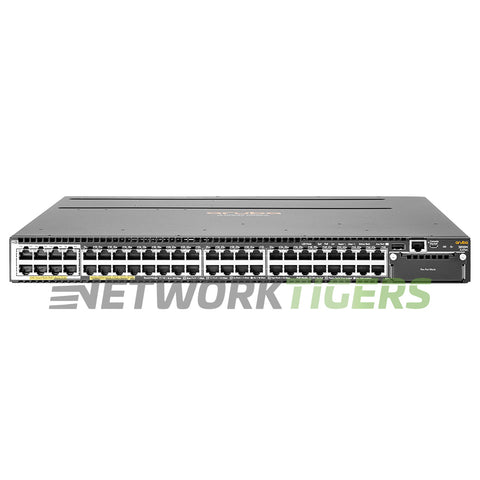

Aruba JL076A: 40 RJ-45 autosensing 10/100/1000 PoE+ ports - Ports 1—40 support MACSec. 8 RJ-45 HPE Smart Rate Multi-Gigabit ports; Ports 1—8 support MACSec. 1 open module slot Supports a maximum of 4 SFP+ ports or 2 40 GbE ports, with optional module.


Specifications

  • Network Ports : 40x 1 Gigabit Ethernet PoE+ RJ-45, 8x HPE Smart Rate Multi-Gigabit Ethernet RJ-45
  • Product Family : Aruba 3810 Series
  • Management Ports : 1x RJ-45 Serial Console, 1x RJ-45 Gigabit Management, 1x mini-USB Type B Console, 1x USB/AUX
  • Stacking Ports : 1x Stacking Module Slot - The JL084A Stacking Module is not included - High-performance stacking provides up to 336 Gbps of stacking throughput; each 4-port stacking module can support up to 42 Gbps in each direction per stacking port
  • Module Slots and Options : 2x Expansion Module Slots - Modules are not included - Sold Separately - Options are - JL079A (2x 40GB QSFP+), JL078A (1x 40GB QSFP+), JL081A (4x 10GB SFP+), JL083A (4x 10GB SFP+)
  • Stacking Cable Options : J9578A (0.5m), J9665A (1m), J9579A (3m)
  • Fan Modules AirFlow Direction : 1x JL088A Aruba 3810 Switch Fan Tray Included
  • Power Supplies Included : 2x Power Supply slots - 1 Minimum Power Supply Required - Ordered Separately - Options are JL085A (250W AC), JL086A (680W AC), JL087A (1050W AC)
  • Switching Capacity : 480 Gbps
  • Forwarding Rate : 273.8 Mpps
  • MAC Address Table Size : 64000
  • Latency : < 2.8 μS (FIFO 64-byte packets) (1000MB)
  • Rack Mounts : Included (1-RU)
  • Model Number : JL076A
  • Part Number : JL076A
  • Condition : New


Included

  • One (1) NEW Aruba HPE JL076A 40x 1GB PoE+ RJ-45 8x MultiGB 1x Expansion Mod Slot Switch as described above
