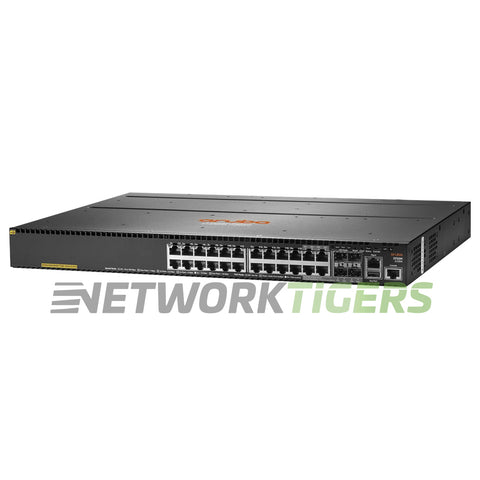

NEW HPE Aruba JL320A 20x 1GB PoE+ RJ-45 4x 1GB Combo 1x Expansion Module Switch
New

NEW HPE Aruba JL320A 20x 1GB PoE+ RJ-45 4x 1GB Combo 1x Expansion Module Switch

$ 2,146.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-1925
UPC: 190017071213

Overview

The HPE Aruba JL320A is a high-performance switch for efficient network management. With 20x 1GB PoE+ RJ-45 ports and 4x 1GB Combo ports, it offers great flexibility in connectivity options. The inclusion of an expansion module allows for future scalability.

This switch has an impressive PoE budget of 840W, ensuring sufficient power delivery to connected devices such as wireless access points or IP cameras. The switching capacity ranges from a minimum of 128 Gbps to a maximum stacking configuration of 228 Gbps (including stacking), guaranteeing fast and reliable data transmission across networks.

With a forwarding rate clocked at 95.2 Mpps and MAC Address Table Size maximum of 32768 entries, this switch easily handles large traffic volumes while maintaining low latency.

Aruba JL320A: 20 Autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000Base-T IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only. 4 Combo 10/100/1000BASE-T PoE+ or 100/1000Mbps SFP Ports.


Specifications

  • Network Ports : 20x 1 Gigabit Ethernet PoE+ RJ-45
  • Uplink Ports : 4x 1 Gigabit Ethernet Combo (1 Gigabit Ethernet PoE+ RJ-45 or 1G SFP)
  • Management Ports : 1x Dual Personality Serial Console, 1x USB Type B, 1x Out of Band Management,
  • Stacking Ports : 1x Stacking Module Slot - Not included - Options are - JL325A - Stacking Cable Options are J9734A (0.5m), J9735A (1m), J9736A (3m) - Stacking Performance 100Gbps
  • Module Slots and Options : 1x Expansion Module Slot - Modules are not included
  • Expansion Module Options : JL078A (1x 40GB QSFP+), JL083A (4x 10GB SFP+ MACsec), JL081A (4x 1/2.5/5/10GB RJ-45 SmartRate) - None Included
  • Fan Modules AirFlow Direction : Internal
  • Power Supplies Included : 2x Power Supply Slots - PSU's not included - 1x PSU required - Options are JL085A
  • PoE Budget : 840W
  • Switching Capacity : 128 Gbps - 228 Gbps (Including Stacking)
  • Forwarding Rate : 95.2 Mpps
  • MAC Address Table Size : 32768
  • Latency : < 3.1µs (FIFO 64-byte packets) (1000MB)
  • Rack Mounts : Included (1-RU)
  • Model Number : JL320A
  • Part Number : JL320A
  • Condition : New


Included

  • One (1) NEW Aruba HPE JL320A 2930M Series 20x 1GB PoE+ RJ-45 4x 1GB Combo Switch as described above
