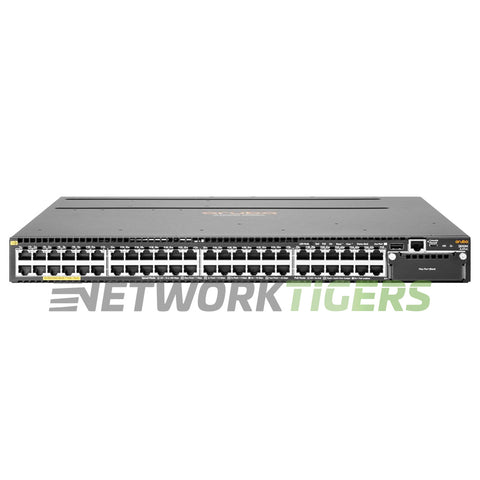

NEW HPE Aruba JL428A 3810 Series 48x 1GB PoE+ RJ45 4x 10GB SFP+ Switch
New

NEW HPE Aruba JL428A 3810 Series 48x 1GB PoE+ RJ45 4x 10GB SFP+ Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-4989

Overview

The HPE Aruba JL428A 3810 Series Switch is designed for high-performance networking with features like a switching capacity of 320 Gbps and a forwarding rate of up to 190.5 Mpps. This PoE+ switch offers a maximum PoE power budget of up to 1440W, making it suitable for powering network devices such as Wi-Fi access points or IP cameras.

With its robust design and large MAC address table size of 64,000 entries, this switch can efficiently handle the demands of modern networks. The low latency ensures quick data transfer speeds without delays, while the four integrated SFP+ ports provide flexibility for connecting to other network devices at higher speeds.

Aruba JL428A: 48x Gigabit Ethernet PoE+ RJ45 network ports with a further 4 10 Gigabit Ethernet SFP+ ports for uplink. Stacking module slot as well as expansion module slot.


Specifications

  • Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ45
  • Uplink Ports : 4x 10 Gigabit Ethernet SFP+ (through the use of expansion module - see "Module Slots and Options")
  • Management Ports : 1x RJ45 Serial Console, 1x RJ45 Out of Band Management, 1x USB
  • Stacking Ports : 1x Stacking Module Slot - module not included
  • Module Slots and Options : 1x Expansion Module Slot - 1x 3810M 4x SFP+ Module Included (JL083A)
  • Stacking Cable Options : J9578A (0.5m), J9665A (1m), J9579A (3m)
  • Fan Modules AirFlow Direction : 1x JL088A Fan Tray included
  • Power Supplies Included : 1x JL086A 680W AC PSU included - 2x Slots - 2nd PSU ordered separately - Options for 2nd PSU are JL085A (250W AC), JL086A (680W AC), JL087A (1050W)
  • PoE Power Max Possible : 1440W
  • Switching Capacity : 320 Gbps
  • Forwarding Rate : Up to 190.5 Mpps
  • MAC Address Table Size : 64,000
  • 1000Mb Latency : < 2.8 µs
  • Rack Mounts : Included (1-RU)
  • Model Number : JL428A
  • Part Number : JL428A
  • Condition : New


Included

  • One (1) NEW Aruba HPE JL428A 3810 Series 48x 1GB PoE+ RJ45 4x 10GB SFP+ Switch as described above
