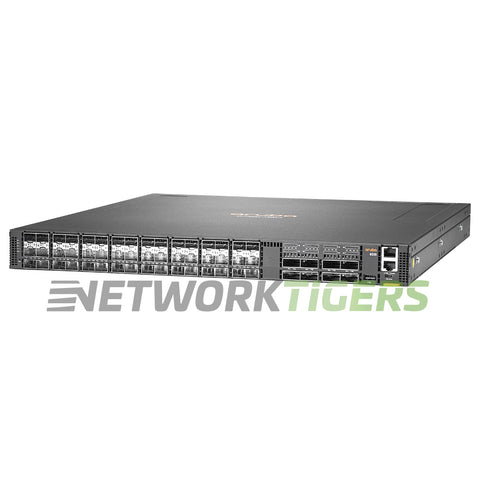

The HPE Aruba JL624A is a cutting-edge switch with exceptional performance and reliability. It features 48x 25GB SFP28 ports and 8x 100GB QSFP28 ports with front-to-back airflow. With its impressive switching capacity of 6.4Tbs, the JL624A can handle high traffic data volumes without reducing speed or quality.
This switch also boasts a forwarding rate of up to 2,000 Mpps (Million packets per second), ensuring fast and efficient data transmission across networks. Meanwhile, its MAC Address Table Size accommodates up to an impressive number -128k entries – allowing seamless communication between devices within your infrastructure.
From handling large-scale networking projects to enabling smooth communications in demanding environments such as enterprise offices or data centers, the HPE Aruba JL624A delivers industry-leading capabilities.
HPE Aruba JL624A: Supports 48 ports of 1G*/10G/25GbE (SFP/SFP+/SFP28) and 8 ports of 40G/100GbE (QSFP+/QSFP28) SFP+ ports (with an optional 10GBASE-T transceiver). Front-to-Back Airflow.
- Network Ports : 48x 25 Gigabit Ethernet SFP28
- Uplink Ports : 8x 100 Gigabit Ethernet QSFP28
- Management Ports : 1x RJ45 Serial, 1x Micro USB, 1x RJ45 Ethernet
- Packet Buffer : 32MB
- VLAN's : Supports up to 4040 port based or IEEE 802.1Q based VLANs
- IPv4 Multicast Routes : 4094
- IPv6 Multicast Routes : 4094
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 6x JL628A Fans included - Front-to-Back Airflow
- Power Supplies Included : 2x JL632A 650W AC Power Supplies included - Front-to-Back Airflow
- Power Supply Options : JL633A is the B-F Airflow Option - Not included
- Switching Capacity : 6.4Tbs
- Forwarding Rate : 2,000 Mpps
- MAC Address Table Size : 128,000
- DRAM and Flash : 16GB RAM, 8GB Flash
- Model Number : JL624A
- Part Number : JL624A, 8325-48Y8C
- Condition : New

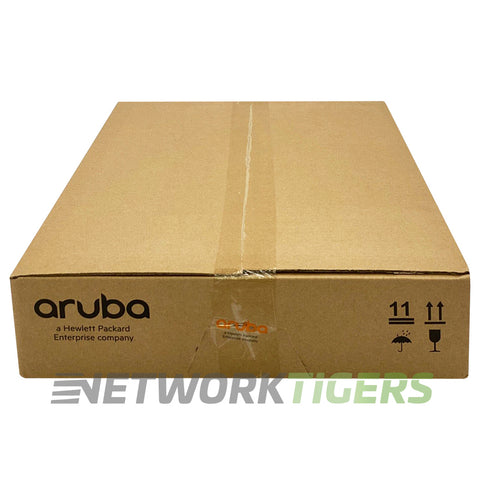

- One (1) NEW HPE Aruba JL624A 48x 25GB SFP28 8x 100GB QSFP28 Front-to-Back Airflow Switch as described above
