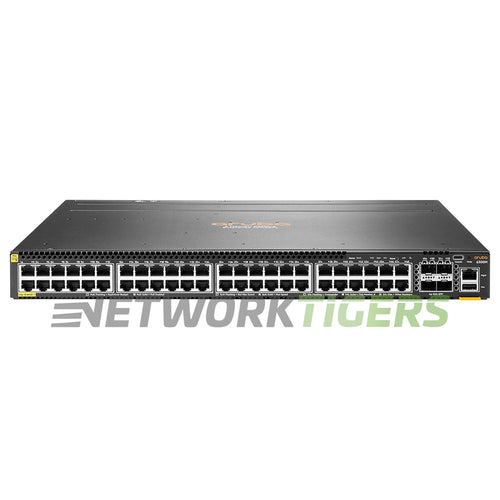

HPE Aruba JL661A CX 6300 Series 48x 1GB PoE+ RJ-45 4x 50GB SFP56 Switch

$ 2,369.99

27 in stock Call if you need more

Main Quantity

Shipping: OVERNIGHT OPTION

Condition: Seller refurbished

Warranty: 365 days

SKU: NSB-8063

UPC: 190017339443

The HPE Aruba JL661A CX 6300 Series Switch offers high-performance networking capabilities for modern business needs. With its 48x1GB PoE+ RJ-45 ports and 4x25GB SFP56 interfaces, it provides reliable connectivity options for a variety of devices.

This switch is designed to easily handle demanding workloads thanks to its powerful features. It has a generous PoE budget of 1440W, ensuring sufficient power delivery to connected devices without additional power sources.

With a switching capacity of up to 496 Gbps and a forwarding rate of up to 369 Mpps (million packets per second), this switch ensures fast data transmission across your network. The MAC address table size can accommodate up to 32,768 entries, allowing efficient handling of device addresses on your network.

HPE Aruba JL661A: Aruba 6300M 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch.

Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ-45 - IEEE 802.3bt Class 6 (60W)
Uplink Ports : 4x 1/10/25/50 Gigabit Ethernet SFP56 (Also used as stacking ports)
Management Ports : 1x USB-C Console Port, 1x OOBM, 1x USB Type A Host, 1x Bluetooth dongle to be used with CX Mobile App
Stacking Ports : SFP56 Uplink ports are used for stacking - They support speeds of 1GB, 10GB, 25GB and 50GB for a total of up to 200 Gbps of stacking throughput per switch
Stacking Options : Support for up to 10 switches (or members) in a stack via chain or ring topology
Stacking Cable Options : 10GB = J9281D, J9283D | 25GB = JL487A, JL488A, JL489A | 50GB = R0M46A, R0M47A
AirFlow Direction : Front-to-Back Airflow
Fan Module Options : 1x JL669A Fan Tray Included - 2x Fan Tray Slots - JL761A is an option for Back-to-Front Airflow
Power Supplies Included : 2x PSU Slots - None Included - 1x Min Required - Ordered Separately
Power Supply Options : JL086A (680W AC), JL087A (1050W AC), JL670A (1600W AC)
PoE Budget : 1440W (24 at 802.3bt 60W per port)
Switching Capacity : 496 Gbps
Forwarding Rate : 369 Mpps
MAC Address Table Size : 32,768
Latency : 1Gbps = 2.28ųSec, 10Gbps = 1.46ųSec, 25Gbps = 1.90ųSec, 50Gbps1 = 3.49ųSec
DRAM and Flash : 8GB DDR4, 32GB eMMC
Model Number : JL661A
Part Number : JL661A, JL661A#ABA
Condition : Seller refurbished

More information on this HPE JL661A.

One (1) Seller refurbished HPE Aruba JL661A CX 6300 Series 48x 1GB PoE+ RJ-45 4x 50GB SFP56 Switch as described above
One (1) Fan Module Included
One (1) Set of Rack Mount Brackets Included

Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
Transceiver Modules Not Included
Power Supplies Not Included
Power Cord Not Included
