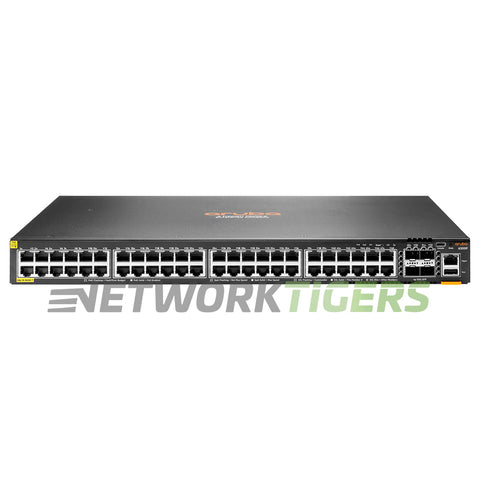

The HPE Aruba JL665A CX 6300 Series switch is an advanced networking solution designed to enhance connectivity and performance in enterprise environments. With its impressive switching capacity of 496 Gbps, this switch ensures fast and reliable data transmission across your network.
Equipped with 48x1GB PoE+ RJ45 ports and four additional 25GB SFP56 ports, the JL665A offers versatile connectivity options for various devices. Its forwarding rate of up to 369 Mpps guarantees efficient packet delivery, while the MAC Address Table Size of 32,768 enables seamless communication between connected devices.
This high-quality switch from HPE delivers exceptional reliability and scalability—ideal for businesses that require robust networking solutions capable of supporting their expanding requirements. Whether you need smooth video streaming or secure file transfers within your organization, the HPE Aruba JL665A CX Switch provides unparalleled speed and efficiency.
- Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ45 - IEEE 802.3bt Class 6 (60W)
- Uplink Ports : 4x 1/10/25/50 Gigabit Ethernet SFP56 (Also used as stacking ports)
- Management Ports : 1x USB-C Console Port, 1x OOBM, 1x USB Type A Host, 1x Bluetooth dongle to be used with CX Mobile App
- Stacking Ports : SFP56 Uplink ports are used for stacking - They support speeds of 1GB, 10GB, 25GB for a total of up to 200 Gbps of stacking throughput per switch
- Stacking Options : Support for up to 10 switches (or members) in a stack via chain or ring topology
- Stacking Cable Options : 10GB = J9281D, J9283D | 25GB = JL487A, JL488A, JL489A | 50GB = R0M46A, R0M47A
- Fan Module Options : Fixed
- Power Supplies Included : 1x Fixed PSU 100V-120V/200V-240V Internal 200W AC PSU
- PoE Budget : 1440W (24 at 802.3bt 60W per port)
- Switching Capacity : 496 Gbps
- Forwarding Rate : 369 Mpps
- MAC Address Table Size : 32,768
- Latency : 1Gbps = 2.28ųSec, 10Gbps = 1.46ųSec, 25Gbps = 1.90ųSec, 50Gbps1 = 3.49ųSec
- DRAM and Flash : 8GB DDR4, 32GB eMMC
- Model Number : JL665A
- Part Number : JL665A, JL665A#ABA
- Condition : New
- One (1) New HPE JL665A Aruba CX 6300 Series 48x 1 Gigabit PoE+ RJ45 4x 25 SFP56 Switch as described above
