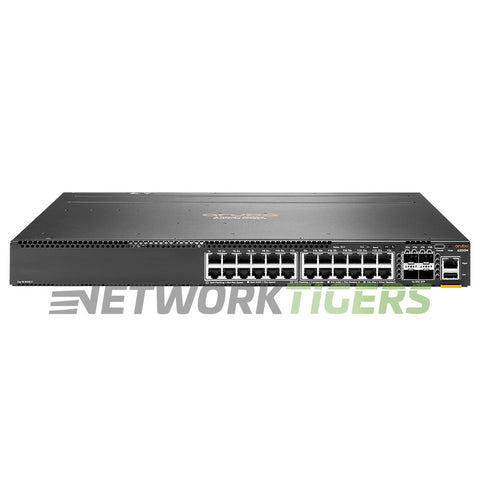

The HPE Aruba JL668A CX 6300 Series Switch is a powerful networking solution for small to medium-sized businesses. With its stackable design, this switch allows you to easily expand your network as needed with up to 10 members per stack.
Featuring a switching capacity of 448 Gbps and a forwarding rate of 334 Mpps, the CX 6300 Series ensures fast and reliable data transfer throughout your network. The large MAC address table size of 32,768 enables seamless communication between devices.
Equipped with twenty-four RJ-45 ports that support gigabit speeds and four SFP56 slots for high-speed connectivity, this switch offers flexible deployment possibilities based on your specific business needs.
HPE Aruba 6300F 24-port 1GbE and 4-port SFP56 Switch (JL668A): 24x ports 10/100/1000BaseT Ports, 1G/10G/25/50 SFP ports
- Network Ports : 24x 1 Gigabit Ethernet RJ-45
- Uplink Ports : 4x 50 Gigabit Ethernet SFP56 (Also used as stacking ports)
- Management Ports : 1x USB-C Console Port, 1x OOBM, 1x USB Type A Host, 1x Bluetooth dongle to be used with CX Mobile App
- Stacking Ports : SFP56 Uplink ports are used for stacking - They support speeds of 1GB, 10GB, 25GB and 50GB for a total of up to 200 Gbps of stacking throughput per switch
- Stacking Options : Support for up to 10 switches (or members) in a stack via chain or ring topology
- Stacking Cable Options : 10GB = J9281D, J9283D | 25GB = JL487A, JL488A, JL489A | 50GB = R0M46A, R0M47A
- Fan Module Options : Fixed
- Power Supplies Included : 1x Internal 200W AC PSU
- Switching Capacity : 448 Gbps
- Forwarding Rate : 334 Mpps
- MAC Address Table Size : 32,768
- DRAM and Flash : 8GB DDR4, 32GB eMMC
- Model Number : JL668A
- Part Number : JL668A, JL668A#ABA
- Condition : New
- One (1) New HPE JL668A Aruba CX 6300 Series 24x 1 Gigabit RJ-45 4x 25 SFP56 Switch as described above
