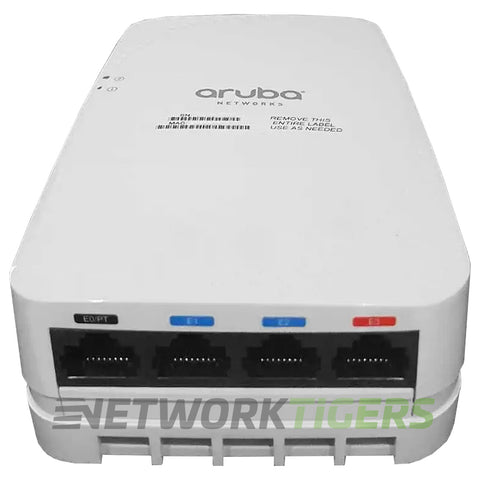

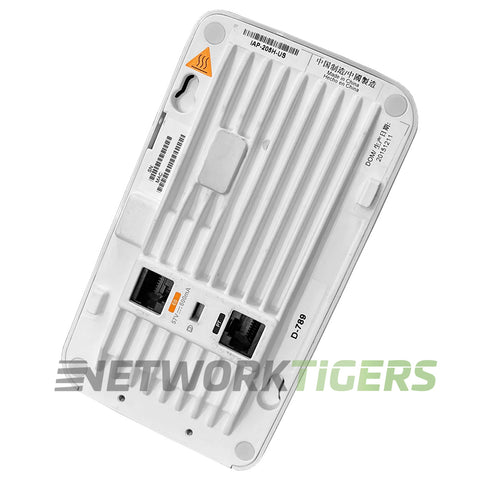

The HPE Aruba JW167A AP-205H is a dual-radio 802.11ac wireless access point with integrated semi-directional antennas for optimized performance in vertical orientation. It supports up to 256 client devices per radio and 16 BSSIDs per radio, providing reliable connectivity in busy environments.
With a maximum data rate of up to 867 Mbps (80-MHz channel) or 400 Mbps (40-MHz channel), this TAA-compliant AP ensures fast and efficient wireless communication on both the 2.4 GHz and 5 GHz frequencies.
Please note that all applicable regulatory standards are met, making it suitable for deployment across different regions without any compliance issues.
Aruba JW167A: Aruba AP-205H FIPS/TAA-compliant Hospitality 802.11ac Dual 2x2:2 Radio Integrated Antenna AP.
- Wi-Fi Standard : Wi-Fi 5 (802.11ac)
- Managed By : 2 Options - Controller-Managed Mode. Managed by Aruba Mobility Controllers. Or Aruba Instant Mode - Controllerless mode where a single AP automatically distributes the network configuration to other Instant APs in the WLAN
- Suggested Use : For hospitality and branch deployments
- Region : US - TAA
- Radios : 1x 5GHz 802.11ac radio, 1x 2.4GHz 802.11n radio.
- Spatial Streams per Radio : 2
- Maximum Data Rate : up to 867 Mbps (80-MHz channel) or 400 Mbps (40-MHz channel) wireless data rate
- Supports : Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per radio
- PoE Standard : PoE - PD-9001GR-AC (802.3at) - Injectors sold separately
- DC Power Input : DC AP-AC-48V36C (48V/36 watts) - Power Sources sold separately
- Uplink Ports : 1x 1 Gigabit Ethernet RJ45, 3x 1 Gigabit Ethernet RJ45 LAN
- Other Ports : 1x USB 2.0 host interface (Type A connector)
- Antenna Type : 4x Integrated semi-directional antennas for 2x2 MIMO with maximum antenna gain of 4.5 dBi in 2.4 GHz and 5.0 dBi in 5 GHz. Built-in antennas are optimized for vertical orientation of the AP
- MIMO : 2x2 MIMO with two spatial streams
- TAA : Yes
- Mounting Options : AP-205H-MNT1 - Mount plate to attach AP to single gang wall-box, AP-205H-MNT2 - Mount plate and insert for use with dual gang box, AP-205H-MNTR - Aruba 205H Access Point desk mount conversion kit
- Mounts Included : AP-205H-MNT1 Included (Mount plate to attach AP to single gang wall-box)
- Model Number : JW167A
- Part Number : JW167A, AP-205H, APINH205
- Condition : Seller refurbished
- One (1) Seller refurbished HPE Aruba AP-205H JW167A TAA Wi-Fi 5 802.11ac Internal Antenna Wireless AP as described above
- One (1) AP-205H-MNT1 Mount Plate Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer\'s website or the web. Software or firmware updates may be available through the manufacturer\'s website - Power Supplies Not Included
- Power Adapter Not Included
