The HPE Aruba JW169A AP-214 is a dual-radio wireless access point supporting 802.11ac technology with 3x3:3 MIMO for improved connectivity. Operating on both 2.4 GHz and 5 GHz frequencies, it delivers maximum data rates of up to 1.3 Gbps.
Compatibility includes IEEE standards such as 802.11a/b/g/n/ac, ensuring broad device support across various protocols. External antenna connections provide flexibility in signal coverage adjustments based on deployment needs.TAA compliance ensures suitability for government and regulated industries requiring trade agreement adherence.

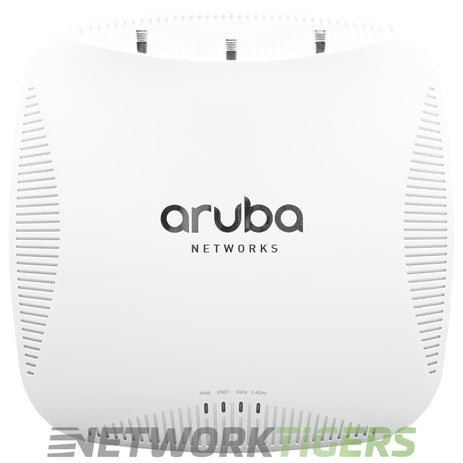

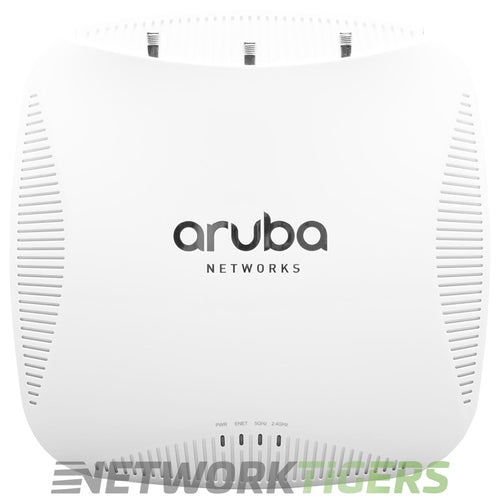

HPE Aruba JW169A AP-214 Dual Radio 802.11ac 3x3:3 MIMO External Ant (TAA) WAP
- Interface Ports : 1x 1 Gigabit Ethernet PoE RJ45
- Radios : 2.4-GHz (450 Mbps max rate) and 5-GHz (1.3 Gbps max rate) radios, each with 3x3 MIMO
- Management Ports : 1x RJ45 Console port, 1x USB 2.0 (Type A) port
- Antenna Ports : 3x RP-SMA connectors for external dual-band antennas - Max Gain = 1.0 dB in 2.4 GHz and 2.0 dB in 5 GHz - Antennas Not Included
- Power Options : Power over Ethernet - 48 Vdc (nominal) 802.3af/802.3at compliant source | Direct DC source - 12 Vdc nominal, +/- 5% - Power Adapter JX989A Not Included - PoE Injector JW627A Not Included
- Frequency : 2.4 GHz, 5 GHz
- Data Link Protocol : IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
- MIMO : 3x3 MIMO
- Maximum Data Rate : 1.3 Gbps
- TAA : Yes
- Mounts : Included - 2x for attaching to 9/16-inch or 15/16-inch T-bar drop-tile ceiling (JW044A)
- Model Number : JW169A
- Part Number : JW169A, AP-214, APIN0214
- Condition : Seller refurbished
- One (1) Seller refurbished HPE Aruba AP-214 JW169A (TAA) Wi-Fi 5 802.11ac Ext Antenna Indoor Wireless AP as described above
- One (1) Ceiling Mount Bracket Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Adapter Not Included
