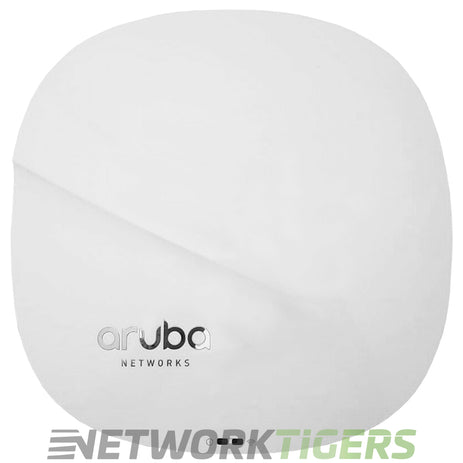

The HPE Aruba JW186A AP-325 is a dual-radio wireless access point from Hewlett Packard Enterprise. It features an internal antenna and supports IEEE 802.11a/b/g/n/ac protocols with MU-MIMO (4x4:4). The maximum data rates are up to 1,733 Mbps on the 5 GHz band and up to 600 Mbps on the 2.4 GHz band.
This unit includes two Ethernet ports that support Power over Ethernet (PoE) for flexible installation without separate power lines. Wall or ceiling mounting options allow deployment in various indoor locations. Compatibility extends across legacy Wi-Fi standards through current-generation IEEE specifications, supporting mixed-client environments requiring high throughput per radio chain while maintaining standard compliance within enterprise use cases where power sourcing via PoE+ is available over Cat5e/6 cabling systems or similar infrastructure backhaul connections as necessary.
Aruba JW186A: Aruba AP-325 802.11n/ac 4x4:4 MU-MIMO Dual Radio Integrated Antenna AP.
- Interface Ports : 2x 1 Gigabit Ethernet RJ45,
- Wireless LAN Standard : IEEE 802.11ac
- Management Ports : 1x RJ45 Console, 1x USB 2.0 Type A
- Antenna Ports : 8x Integrated Omni-Directional Downtilt Antennas
- Power Options : Power over Ethernet (PoE) - 48 Vdc (nominal) 802.3af/802.3at compliant source | Direct DC source - 12 Vdc nominal, +/- 5% - Power Sources are sold separately
- Frequency : 2.4 GHz, 5 GHz
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Wireless Protocol :
- Maximum Data Rate : 5 GHz (1,733 Mbps max rate) and 2.4 GHz (600 Mbps max rate)
- Mounts : The AP ships with two (black) mounting clips to attach to a 9/16-inch or 15/16-inch flat T-bar drop-tile ceiling.
- Model Number : JW186A
- Part Number : JW186A, AP-325
- Condition : Seller refurbished
- One (1) Seller refurbished HPE Aruba JW186A AP-325 Dual Radio 802.11ac 4x4:4 MU-MIMO Internal Antenna WAP as described above
- One (1) Mount Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Adapter Not Included
- Power Injector Not Included
