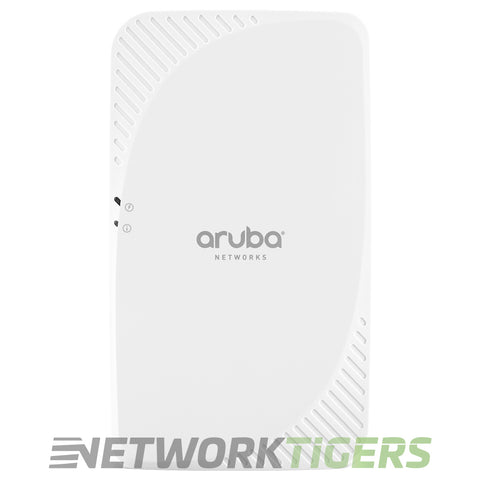

The HPE Aruba JW217A IAP-205H Instant WAP is a reliable dual-radio 802.11ac device with 2x2:2 MIMO technology, offering up to 867 Mbps data rates on an 80-MHz channel.
Equipped with four integrated semi-directional antennas optimized for vertical orientation, it boasts maximum gains of 4.5 dBi in the 2.4 GHz band and 5.0 dBi in the 5 GHz band. This product is designed for use in US regulatory domains and operates simultaneously on both frequencies, ensuring seamless wireless connectivity for your network needs at home and work environments.
Aruba Instant IAP-205H (US) Hospitality 802.11ac Dual 2x2:2 Radio Integrated Antenna AP
- Interface Ports : 1x 1 Gigabit Ethernet RJ45, 3x 1 Gigabit Ethernet RJ45 LAN
- Radios : 1x 5GHz 802.11ac radio, 1x 2.4GHz 802.11n radio.
- Management Ports : 1x USB 2.0 host interface (Type A connector)
- MIMO : 2x2 MIMO with two spatial streams
- Antenna Options : 4x Integrated semi-directional antennas for 2x2 MIMO with maximum antenna gain of 4.5 dBi in 2.4 GHz and 5.0 dBi in 5 GHz. Built-in antennas are optimized for vertical orientation of the AP
- Power Options : DC AP-AC-48V36C (48V/36 watts) | PoE - PD-9001GR-AC (802.3at) - Power Sources and Injectors sold separately
- Frequency : 2.4 GHz, 5 GHz
- Designed for : For hospitality and branch deployments
- Maximum Data Rate : up to 867 Mbps (80-MHz channel) or 400 Mbps (40-MHz channel) wireless data rate
- Regulatory domain : US
- Instant : All Instant hardware SKUs can be managed by Aruba Central
- Mounts : Not Included - JW040A Mount plate to attach AP to single gang wall-box (most international variations covered) - Ordered Separately
- Model Number : JW217A
- Part Number : JW217A
- Condition : New

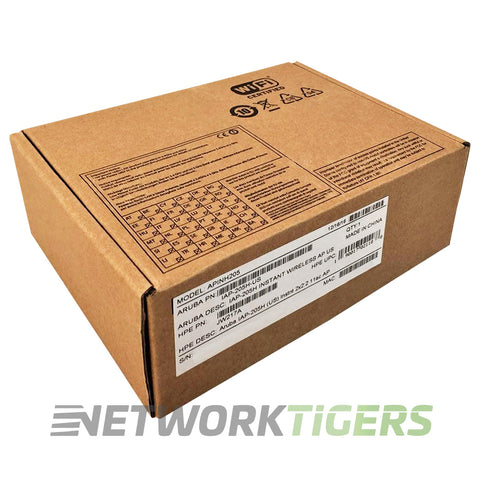

- One (1) NEW HPE Aruba JW217A IAP-205H Instant (US) Dual Radio 802.11ac 2x2:2 MIMO WAP as described above
