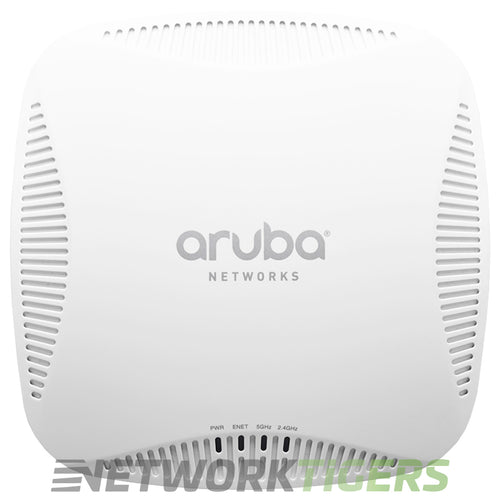

HPE Aruba JW223A IAP-214 (US) by Hewlett Packard Enterprise is an instant dual radio wireless access point in a compact form factor. It supports 2.4 GHz and 5 GHz bands with 3x3:3 MIMO, compliant with IEEE 802.11a/b/g/n/ac, and provides a maximum data rate of 1.3 Gbps.
The unit supports Instant Access Point mode and can be deployed without a controller. It is designed for ceiling or wall mounting and powered through 802.3af PoE or optional DC input. Dual radios and standard Ethernet interfaces enable flexible integration into wireless networks.
Aruba JW223A: Aruba Instant IAP-214 (US) 802.11n/ac Dual 3x3:3 Radio Antenna Connectors AP.
- Interface Ports : 1x 1 Gigabit Ethernet PoE RJ45
- Radios : 2.4-GHz (450 Mbps max rate) and 5-GHz (1.3 Gbps max rate) radios, each with 3x3 MIMO
- Management Ports : 1x RJ45 Console port, 1x USB 2.0 (Type A) port
- Antenna Ports : 3x RP-SMA connectors for external dual-band antennas - Max Gain = 1.0 dB in 2.4 GHz and 2.0 dB in 5 GHz - Antennas Not Included
- Power Options : Power over Ethernet - 48 Vdc (nominal) 802.3af/802.3at compliant source | Direct DC source - 12 Vdc nominal, +/- 5% - Power Adapter JX989A Not Included - PoE Injector JW627A Not Included
- Frequency : 2.4 GHz, 5 GHz
- Data Link Protocol : IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
- MIMO : 3x3 MIMO
- Maximum Data Rate : 1.3 Gbps
- Mounts : Included - 2x for attaching to 9/16-inch or 15/16-inch T-bar drop-tile ceiling (JW044A)
- Model Number : JW223A
- Part Number : JW223A, IAP-214, IAP-214-US, APIN0214
- Condition : Seller refurbished
- One (1) Seller Refurbished HPE Aruba JW223A IAP-214 (US) Instant Dual Radio 802.11ac 3x3:3 MIMO WAP as described above
- One (1) Ceiling Mount Bracket Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Adapter Not Included
