The NEW HPE Aruba JW223A IAP-214 (US) is a high-performance wireless access point that provides fast and reliable Wi-Fi connectivity. Its dual radio 802.11ac technology supports the 2.4 GHz and 5 GHz frequency bands, ensuring optimal coverage and reduced interference.
Featuring a powerful MIMO configuration of 3x3:3, it can transmit data up to an impressive rate of 1.3 Gbps maximum. This enables smooth multi-device usage while maintaining excellent throughput.
Equipped with the InstantOS software from Aruba Networks, this WAP delivers seamless deployment capabilities for ease of setup and management in any environment – small offices or large enterprise networks.

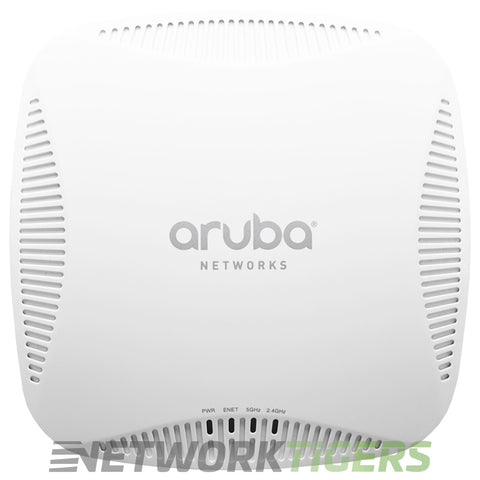

NEW HPE Aruba JW223A IAP-214 (US) Instant Dual Radio 802.11ac 3x3:3 MIMO WAP
- Interface Ports : 1x 1 Gigabit Ethernet PoE RJ45
- Radios : 2.4-GHz (450 Mbps max rate) and 5-GHz (1.3 Gbps max rate) radios, each with 3x3 MIMO
- Management Ports : 1x RJ45 Console port, 1x USB 2.0 (Type A) port
- Antenna Ports : 3x RP-SMA connectors for external dual-band antennas - Max Gain = 1.0 dB in 2.4 GHz and 2.0 dB in 5 GHz - Antennas Not Included
- Power Options : Power over Ethernet - 48 Vdc (nominal) 802.3af/802.3at compliant source | Direct DC source - 12 Vdc nominal, +/- 5% - Power Adapter JX989A Not Included - PoE Injector JW627A Not Included
- Frequency : 2.4 GHz, 5 GHz
- Data Link Protocol : IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
- MIMO : 3x3 MIMO
- Maximum Data Rate : 1.3 Gbps
- Mounts : Included - 2x for attaching to 9/16-inch or 15/16-inch T-bar drop-tile ceiling (JW044A)
- Model Number : JW223A
- Part Number : JW223A
- Condition : New
- One (1) NEW HPE Aruba JW223A IAP-214 (US) Instant Dual Radio 802.11ac 3x3:3 MIMO WAP as described above
