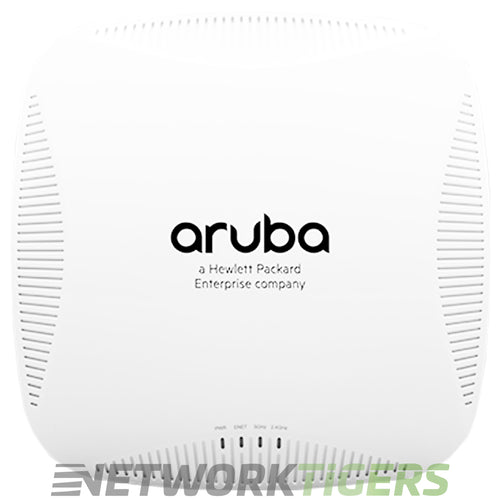

HPE Aruba JW236A IAP-224 (US) Instant Dual Radio 802.11ac 3x3:3 MIMO WAP

HPE Aruba JW236A IAP-224 (US) Instant Dual Radio 802.11ac 3x3:3 MIMO WAP

ASK FOR QUOTE
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-3390
UPC: 190017273631

Overview

JW236A HPE Wireless Access Point: NetworkTigers offers this Wireless Access Point. This HPE JW236A Wireless Access Point we market is tech tested. We can overnight this HPE JW236A Wireless Access Point to your data center.

Aruba JW236A: Aruba Instant IAP-224 (US) 802.11n/ac Dual 3x3:3 Radio Antenna Connectors AP.

Specifications

  • Interface Ports : 2x 1 Gigabit Ethernet PoE RJ-45
  • Radios : 2.4-GHz (600 Mbps max) and 5-GHz (1.3 Gbps max) radios, each with 3x3 MIMO and three combined, diplexed external antenna connectors
  • Management Ports : 1x RJ-45 Console, 1x USB 2.0 (Type A)
  • Antenna Ports : 3x RP-SMA Connectors for External Dual-Band Antennas - Antennas not included
  • Max Gain : 1.5 dB in 2.4 GHz and 3.0 dB in 5 GHz
  • Power Options : Power over Ethernet (PoE) - 48 Vdc (nominal) 802.3af or 802.3at Compliant source | Direct DC source - 12 Vdc nominal, +/- 5% - JX989A AC-DC Adapter Kit is Not Included (sold separately) - JW629A Injector sold separately
  • Frequency : 2.4 GHz, 5GHz
  • MIMO : 3x3 MIMO
  • Maximum Data Rate : 1.3 Gbps
  • Mounts : Included - 2x for attaching to 9/16-inch or 15/16-inch T-bar drop-tile ceiling (JW044A)
  • Shipping Height : 2.8 in
  • Shipping Weight : 2.23 lbs
  • Service Support : Limited warranty - lifetime
  • Model Number : JW236A
  • Part Number : JW236A
  • Condition : Seller refurbished


Included

  • One (1) Seller refurbished HPE Aruba JW236A IAP-224 (US) Instant Dual Radio 802.11ac 3x3:3 MIMO WAP as described above
  • Mounts Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's web site or on the web. Software or firmware updates may be available through the manufacturer's website
  • Power Adapter Not Included
  • Power Injector Not Included
