HPE Aruba JW795A AP-314 Dual Radio 802.11ac 2x2:2/4x4:4 MU-MIMO WAP

HPE Aruba JW795A AP-314 Dual Radio 802.11ac 2x2:2/4x4:4 MU-MIMO WAP

$ 796.99
$ 764.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-3353
UPC: 190017041261

Overview

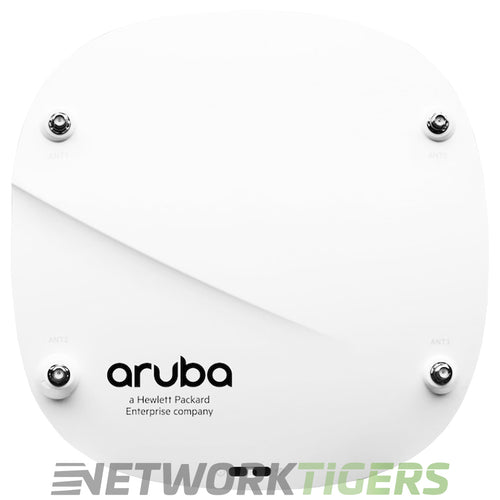

The HPE Aruba JW795A AP-314 is a dual radio 802.11ac wireless access point with MU-MIMO technology, supporting both 2x2:2 and 4x4:4 configurations for improved performance in high-density environments.

It operates on frequencies of 2.4 GHz and 5 GHz, offering data link protocols, including IEEE standards b/g/n/ac for wide compatibility. The maximum data rate reaches up to an impressive peak of 2.1 Gbps, with concurrent rates at the two frequency bands reaching up to as much as 1733 Mbps for 5 GHz and 400 Mbps for 2.4 GHz, which ensures fast and reliable connectivity suitable for modern networking needs.

Aruba JW795A: Aruba AP-314 802.11n/ac 2x2:2/4x4:4 MU-MIMO Dual Radio Antenna Connectors AP.


Specifications

  • Interface Ports : 1x 1 Gigabit Ethernet RJ45
  • Radios : 1x 5GHz 802.11ac 4x4 MIMO (1,733 Mbps max rate), 1x 2.4 GHz 802.11n 2x2 MIMO (300 Mbps max rate) radio
  • Management Ports : 1x USB 2.0 Type A
  • Antenna Ports : 4x RP-SMA - External detachable
  • Power Options : The AP supports direct DC power and Power over Ethernet (POE).  Power over Ethernet (PoE) - 48 Vdc (nominal) 802.3af/802.3at compliant source | Direct DC source - 12Vdc nominal, +/- 5% - Power sources sold separately
  • Frequency : 2.4 GHz, 5 GHz
  • Data Link Protocol : IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
  • Performance : Concurrent data rate (5 GHz) = 1733 Mbps | Concurrent data rate (2.4 GHz) = 400 Mbps | Peak data rate = 2.1 Gbps
  • Mounts : Not Included - 2x JW045A can be used to attach to a 9/16-inch or 15/16-inch flat T-bar drop-tile ceiling
  • Model Number : JW795A
  • Part Number : JW795A
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished HPE Aruba JW795A AP-314 Dual Radio 802.11ac 2x2:2/4x4:4 MU-MIMO WAP as described above

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Power Adapter Not Included
  • Mount Bracket Not Included
