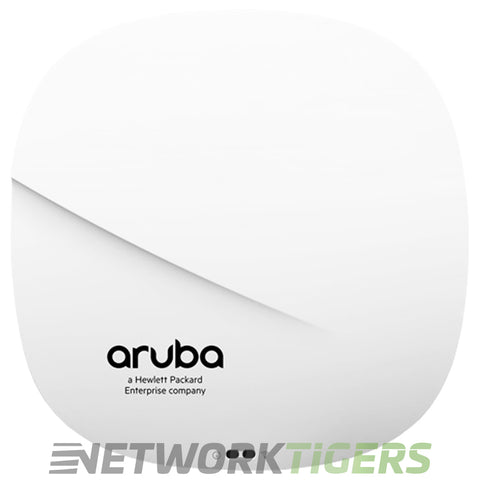

The HPE Aruba JW801A AP-335 is a powerful dual-radio access point that supports the latest 802.11ac Wave 2 technology for fast and reliable wireless connectivity. With four integrated antennas providing 4x4 MIMO support, this access point delivers exceptional performance with a maximum data rate of up to 1733 Mbps.
Operating on both the 2.4 GHz and 5 GHz frequencies, the AP-335 ensures optimal coverage and bandwidth for all your networking needs. It supports multiple data link protocols, including IEEE standards like b, g, n, and ac, ensuring compatibility with various devices.
Ideal for high-density environments such as offices or campuses where many users are simultaneously accessing the network, this access point uses MU-MIMO technology to improve efficiency by allowing multiple clients to communicate with it at once.
Aruba JW801A: Aruba AP-335 802.11n/ac 4x4:4 MU-MIMO Dual Radio Integrated Antenna 2.5+1 GbE AP.
- Interface Ports : 1x 1 Gigabit Ethernet RJ-45, 1x 2.5 Gigabit Ethernet RJ-45
- Product Family : Aruba 330 Series
- Management Ports : 1x RJ-45 Console, 1x USB 2.0
- MIMO Technology : 4-stream multi-user MIMO (MU-MIMO) and 4 spatial streams (4SS)
- Antenna Options : 4x (vertically polarized) integrated 2.4 GHz downtilt omni-directional antennas for 4x4 MIMO with peak antenna gain of 3.8dBi per antenna.
- Power Options : Power over Ethernet (PoE) - 48 Vdc (nominal) 802.3af/802.3at compliant source | Direct DC source - 48Vdc nominal, +/- 5% - Power Injector and Adapter sold separately.
- Frequency : 2.4 GHz, 5 GHz
- Data Link Protocol : IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
- Wireless Protocol : 802.11a/b/g/n/ac
- Maximum Data Rate : 1733 Mbps
- Mounts : Not Included - 2x JW045A can be used to attach to a 9/16-inch or 15/16-inch flat T-bar drop-tile ceiling
- Model Number : JW801A
- Part Number : JW801A, AP-335
- Condition : New
- One (1) NEW HPE Aruba JW801A AP-335 Dual Radio 802.11ac 4x4:4 MU-MIMO Internal Ant WAP as described above
