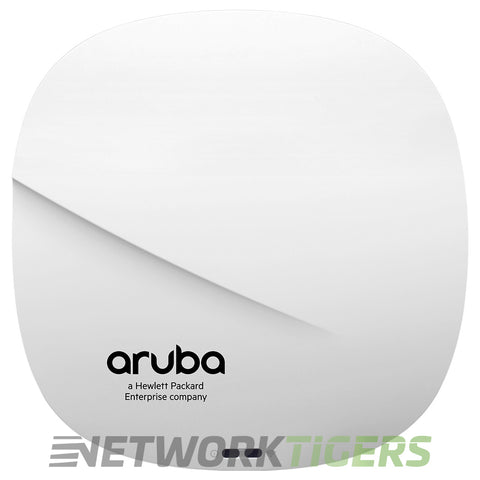

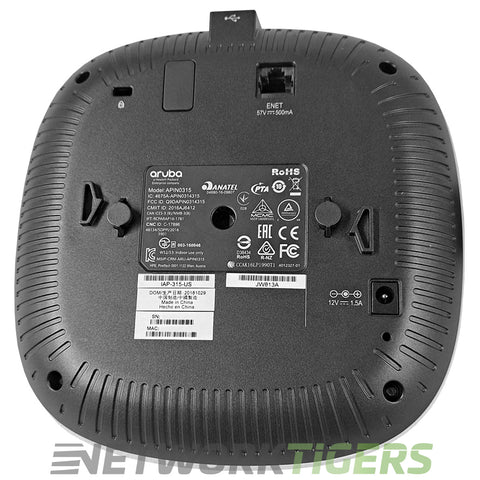

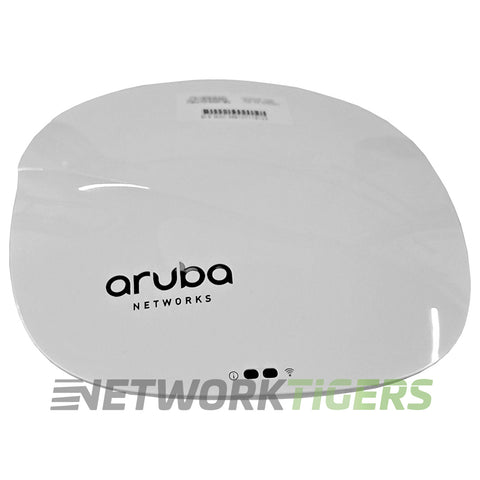

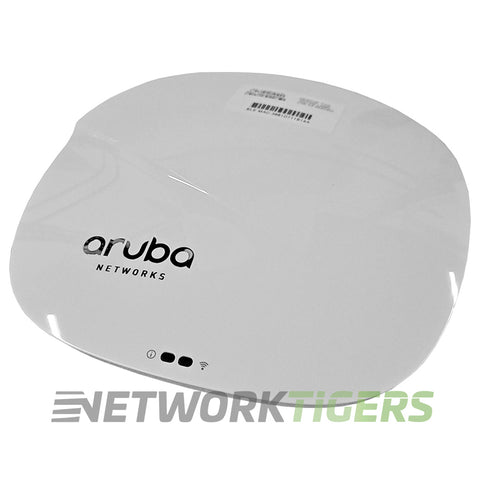

NEW HPE Aruba JW813A IAP-315 (US) Instant 802.11ac 2x2:2/4x4:4 MU-MIMO WAP

NEW HPE Aruba JW813A IAP-315 (US) Instant 802.11ac 2x2:2/4x4:4 MU-MIMO WAP

Ask for quote
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New

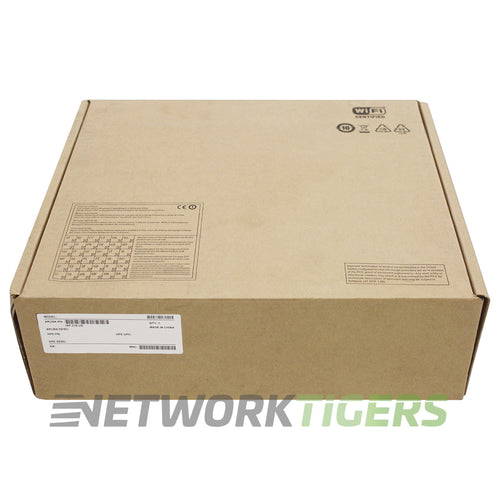

New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-1700
UPC: 190017041445


The HPE Aruba JW813A IAP-315 (US) Instant 802.11ac WAP offers a maximum data rate of up to 2.1 Gbps, with concurrent data rates of 400 Mbps on the 2.4 GHz frequency and 1733 Mbps on the 5 GHz frequency, making it suitable for high-speed wireless networking needs in the US regulatory domain.

With MU-MIMO technology, this device allows multiple devices to transmit and receive data simultaneously without compromising speed or performance.

This access point is designed for efficient connectivity in various environments without sacrificing reliability or stability thanks to its advanced features like dual-band operation and beamforming capabilities. Whether used in small offices or large corporate settings, the HPE Aruba JW813A IAP-315 provides fast and reliable wireless access for seamless network connections throughout any space at an affordable price point that fits within budget constraints.

HPE JW813A: Aruba Instant IAP-315 (US) 802.11n/ac Dual 2x2:2/4x4:4 MU-MIMO Radio Integrated Antenna AP.


  • Interface Ports : 1x 1 Gigabit Ethernet PoE RJ45
  • Radios : 1x 5GHz 802.11ac 4x4 MIMO (1,733 Mbps max rate), 1x 2.4 GHz 802.11n 2x2 MIMO (300 Mbps max rate) radio
  • Management Ports : 1x RJ45 Console, 1x USB 2.0 (Type A)
  • Antenna Ports : 4x Integrated Dual-Band Downtilt Omni-Directional antennas for 4x4 MIMO
  • Power Options : The AP supports direct DC power and Power over Ethernet (POE).  Power over Ethernet (PoE) - 48 Vdc (nominal) 802.3af/802.3at compliant source | Direct DC source - 12Vdc nominal, +/- 5% - Power sources sold separately
  • Frequency : 2.4 GHz, 5 GHz
  • Max Gain : 3.6dBi in 2.4GHz, 6.0dBi in 5.0GHz
  • Performance : Concurrent data rate (2.4 GHz) = 400 Mbps, Concurrent data rate (5 GHz) = 1733 Mbps, Peak data rate = 2.1 Gbps
  • Regulatory domain : US
  • Mounts : Not Included - 2x JW045A can be used to attach to a 9/16-inch or 15/16-inch flat T-bar drop-tile ceiling
  • Model Number : JW813A
  • Part Number : JW813A
  • Condition : New


  • One (1) NEW HPE Aruba JW813A IAP-315 (US) Instant 802.11ac 2x2:2/4x4:4 MU-MIMO WAP as described above
