NEW HPE Aruba AP-304 JX935A Wi-Fi 5 802.11ac External Ant Wireless Access Point
New

NEW HPE Aruba AP-304 JX935A Wi-Fi 5 802.11ac External Ant Wireless Access Point

$ 431.99
$ 312.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-9220 ASK FOR QUOTE
UPC: 818213988264

Overview

The HPE Aruba JX935A AP-304 is a dual radio access point that supports 802.11ac technology with MU-MIMO capabilities. It operates on both the 2.4 GHz and 5 GHz frequency bands and adheres to various IEEE data link protocols, including 802.11a, ac, b, g, and n standards.

With a maximum concurrent data rate of 1.6 Gbps (1,300 Mbps in the 5GHz band and an additional aggregate peak speed of up to), this WAP offers high-speed wireless connectivity for demanding networks. The AP-304 boasts a sleek design while delivering reliable performance across multiple devices simultaneously thanks to its advanced antenna system.

HPE Aruba JX935A: AP-304 802.11n/ac 2x2:2/3x3:3 MU-MIMO Dual Radio Antenna Connectors AP. CONTROLLER BASED VERSION. REQUIRES AN ARUBA CONTROLLER.


Specifications

  • Wi-Fi Standard : 802.11ac Wave 2 (Wi-Fi 5), MU-MIMO
  • Managed By : Aruba Mobility Controller / Aruba Central
  • Suggested Use : Indoor, medium density environments
  • Region : Worldwide (no region restriction on base SKU)
  • Radios : Dual Radio - 5GHz 802.11ac 3x3 MIMO & 2.4GHz 802.11n 2x2 MIMO
  • Spatial Streams per Radio : 5GHz 3SS / 2.4GHz 2SS
  • Maximum Data Rate : 1.6 Gbps aggregate (1,300 Mbps 5GHz + 300 Mbps 2.4GHz)
  • Bluetooth / IoT Radios : Bluetooth Low Energy (BLE), optional Zigbee IoT expansion radio
  • PoE Standard : 802.3af / 802.3at
  • DC Power Input : 12V DC nominal ±5% (2.1/5.5mm center-positive jack)
  • Uplink Ports : 1x 10/100/1000BASE-T RJ-45
  • Other Ports : 1x USB 2.0 Type-A

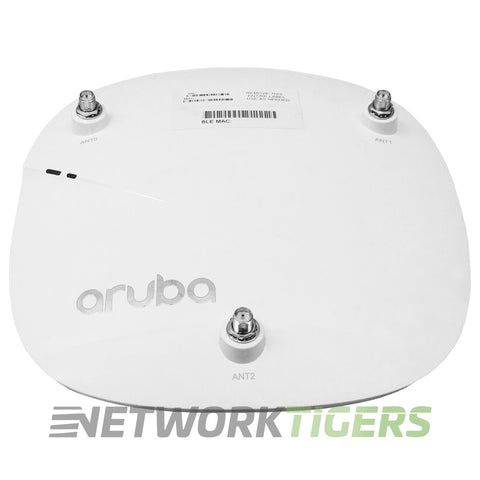

  • Antenna Type : External (RP-SMA connectors)
  • Antenna Ports : 3x dual-band RP-SMA connectors
  • Antenna Options : JW009A, JW001A, JW003A, JW004A, JW011A, JW015A, JW016A - None Included
  • Mounting Options : Ceiling T-bar, optional surface/wall mount kits
  • Mounts Included : 2x mounting clips (9/16 in or 15/16 in flat T-bar drop ceiling)
  • Model Number : JX935A
  • Part Number : JX935A, AP-304
  • Condition : New


Included

  • One (1) NEW HPE Aruba AP-304 JX935A Wi-Fi 5 802.11ac External Ant Wireless Access Point as described above
