The HPE Aruba JX940A IAP-304 (US) is a high-performance wireless access point that supports dual radio 802.11ac technology. Its 2x2:2/3x3:3 MU-MIMO capability delivers fast and reliable Wi-Fi connections for modern networks.
Operating on both the 2.4 GHz and 5 GHz frequency bands, this access point provides excellent coverage and enables simultaneous data transmission to multiple devices with maximum efficiency. With a maximum data rate of 1.7 Gbps, users can enjoy seamless streaming, gaming, and downloading experiences without any lag or interruptions.

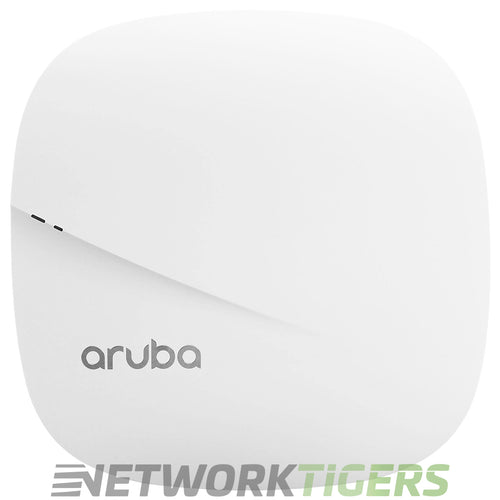

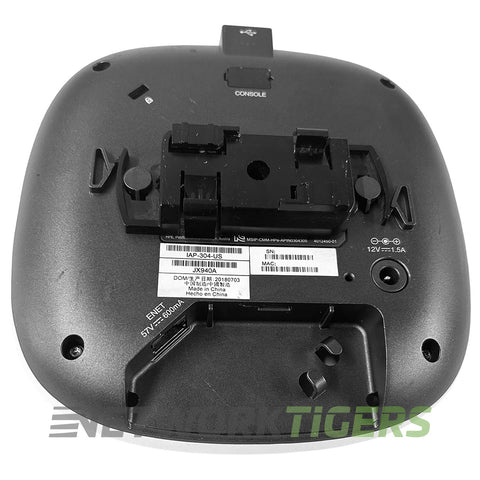

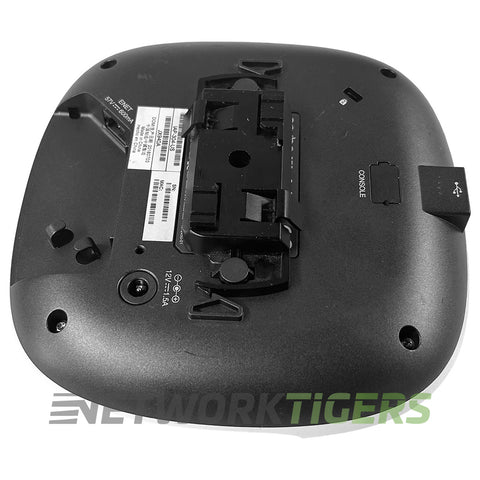

HPE Aruba JX940A IAP-304 (US) Instant DualRadio 802.11ac 2x2:2/3x3:3 MU-MIMO WAP
- Wi-Fi Standard : 802.11ac Wave 2 (Wi-Fi 5), MU-MIMO
- Managed By : Aruba Instant (controller-less) / Aruba Central
- Suggested Use : Indoor, medium density environments
- Region : United States (US)
- Radios : Dual Radio - 5GHz 802.11ac 3x3 MIMO & 2.4GHz 802.11n 2x2 MIMO
- Spatial Streams per Radio : 5GHz 3SS / 2.4GHz 2SS
- Maximum Data Rate : 1.6 Gbps aggregate (1,300 Mbps 5GHz + 300 Mbps 2.4GHz)
- Bluetooth / IoT Radios : Bluetooth Low Energy (BLE), optional Zigbee IoT expansion radio
- PoE Standard : 802.3af / 802.3at
- DC Power Input : 12V DC nominal ±5% (2.1/5.5mm center-positive jack) - adapter not included
- Uplink Ports : 1x 10/100/1000BASE-T (RJ-45)
- Other Ports : 1x USB 2.0 Type-A

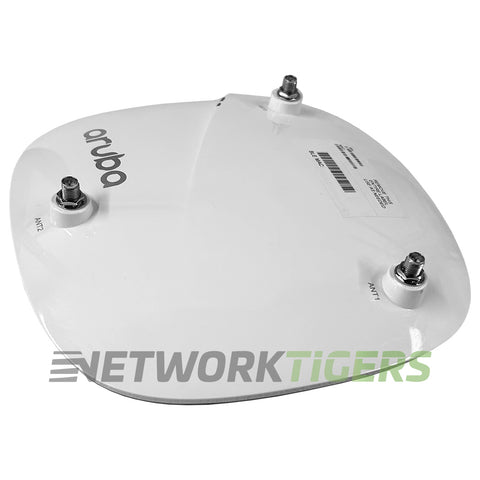

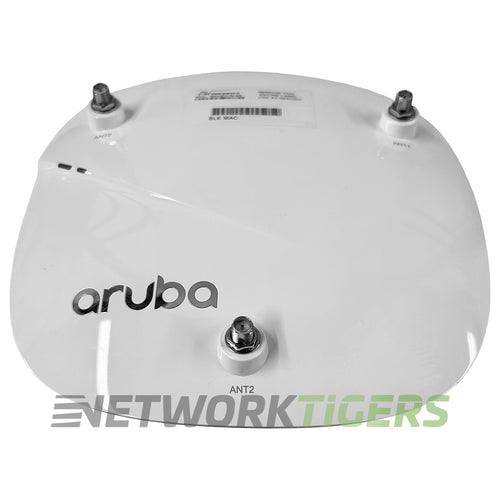

- Antenna Type : External (RP-SMA connectors)
- Antenna Ports : 3x dual-band RP-SMA connectors
- Antenna Options : JW009A, JW001A, JW003A, JW004A, JW011A, JW015A, JW016A
- Mounting Options : Ceiling T-bar, optional surface/wall mount kits
- Mounts Included : 2x mounting clips (9/16 in or 15/16 in flat T-bar drop ceiling)
- Model Number : JX940A
- Part Number : JX940A, IAP-304, IAP-304-US
- Condition : Seller refurbished
- One (1) Seller refurbished HPE Aruba IAP-304 JX940A Wi-Fi 5 802.11ac External Antenna Wireless Access Point as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Adapter Not Included
- Mount Bracket Not Included
