The HPE Aruba JY695A AP-203H US Flex-Radio is a 802.11ac wireless access point with MIMO technology for high-speed data transfer.
It offers two spatial stream SU-MIMO in both the 5GHz and 2.4 GHz bands, supporting up to 867 Mbps in the 5GHz band and up to 400Mbps in the 2.4 GHz band for individual VHT80 or VHT40 client devices respectively. This Access Point is designed to provide reliable connectivity and fast data rates suitable for modern networking requirements.
With its unified hospitality features, this WAP is equipped with antenna options ideal for different deployment scenarios ranging from small businesses to large enterprises looking at expanding their network capabilities efficiently without compromising on performance standards.
Aruba JY695A: Aruba AP-203H (US) Flex-radio 802.11ac 2x2 Unified Hospitality AP with Internal Antennas.
- Interface Ports : 1x 1 Gigabit PoE RJ45, 1x 1 Gigabit RJ45 LAN
- Radios : Flex Radio - Software configurable to operate in either 1x1 dual radio mode, or 2x2 single radio mode
- Management Ports : 1x USB - The USB port on the AP allows the plug-in of Aruba BLE radio modules to enable advanced location and indoor wayfinding
- Antenna Ports : Internal Antennas - Two integrated dual-band moderately directional antennas for 2x2 MIMO with maximum individual antenna gain of 4.9dBi in 2.4GHz and 6.0dBi in 5GHz
- Power Options : Power over Ethernet (PoE) - 48 Vdc (nominal) 802.3af/802.3at compliant source - PoE Injector sold separately
- Frequency : 2.4 GHz, 5GHz
- Maximum Data Rate : Supports up to 867 Mbps in the 5GHz band or up to 400Mbps in the 2.4 GHz band in single radio 2x2 mode
- Mounts : 1x JY701A - The 203H ships with everything you need to deploy as a wall-mounted (hospitality) AP, attaching directly to a standard single-gang data wall-box
- Model Number : JY695A
- Part Number : JY695A
- Condition : New

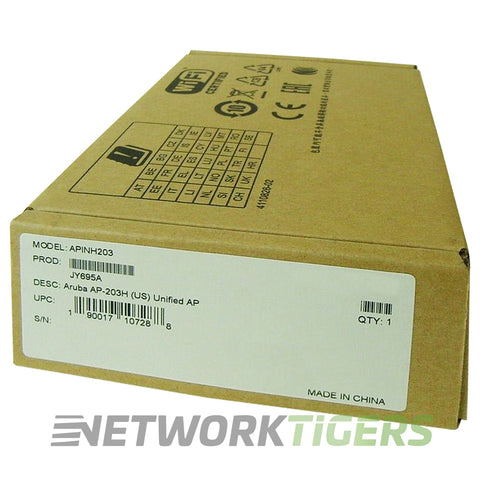

- One (1) NEW HPE Aruba JY695A AP-203H US Flex-Radio 802.11ac 2x2 SU-MIMO Unified Hosp WAP as described above
