NEW HPE Aruba AP-344 JZ024A (TAA) Wi-Fi 5 802.11ac External Antenna Wireless AP

Ask for quote

Shipping: OVERNIGHT OPTION

Condition: New

Warranty: 365 days

SKU: NSN-8461

UPC: 190017164410

The NEW HPE Aruba JZ024A AP-344 (US) Wireless Access Point supports dual-radio operation on 2.4 and 5 GHz frequencies, providing a maximum data rate of up to 2166 Mbps. It features MU-MIMO technology with a 4x4:4 antenna configuration for efficient connectivity in multi-client scenarios.

It is designed for the US regulatory domain and adheres to standards, including IEEE protocols such as 802.11a/b/g/n/ac, ensuring compatibility across modern Wi-Fi environments. This device is TAA-compliant for government or regulated industry applications that require adherence to Trade Agreements Act requirements. At the same time, its external antennas offer flexible deployment options depending on coverage needs and physical layouts.

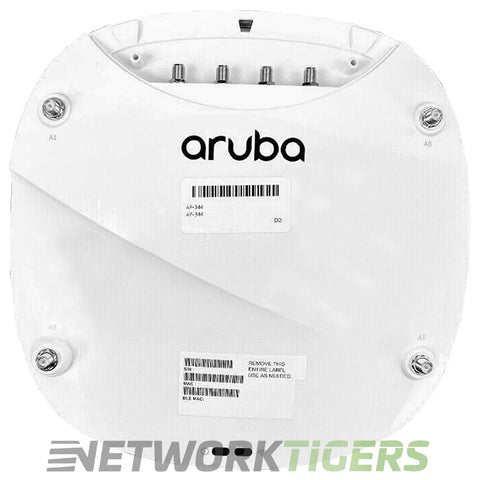

NEW HPE Aruba JZ024A AP-344 (US) Dual Radio 802.11ac 4x4:4 MU-MIMO (TAA) WAP

Interface Ports : 1x HPE SmartRate port, 1x 1 Gigabit RJ45
MIMO Technology : MU-MIMO (Wave 2)
Management Ports : 1x USB 2.0
Antenna Ports : 8x Omni-Directional (2 Sets of 4x RP-SMA antenna connectors)
TAA : Yes
Power Options : Power over Ethernet (PoE) - 48Vdc (nominal) 802.3af/802.3at compliant source | Direct DC source - 48Vdc nominal, +/- 5% - Power Sources sold separately (Injector and Power Adapter)
Frequency : 2.4 GHz, 5 GHz
Data Link Protocol : IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wireless Protocol : 802.11a/b/g/n/ac
Maximum Data Rate : 2166 MBps
Regulatory domain : US (TAA)
Capacity : BSSIDs per radio -16, Wireless clients per Wi-Fi radio - 256
Mounts : The AP ships with two (black) mounting clips to attach to a 9/16-inch or 15/16-inch flat T-bar drop-tile ceiling (JW045A)
Model Number : JZ024A
Part Number : JZ024A
Condition : New
