The HPE Aruba JZ321A AP-303 is a dual-radio wireless access point with internal antennas. It features two vertically polarized omnidirectional antennas for 2x2 MIMO, offering peak antenna gain of -3.3dBi in the 2.4GHz band and 5.8dBi in the 5GHz band.
With support for IEEE standards including 802.11a, ac, b, g, and n, this WAP can achieve data rates of up to 867 Mbps in the 5GHz band and up to 300Mbps in the 2.4 GHz band (for an aggregate peak rate of 1.2 Gbps.
Aruba JZ321A: Aruba AP-303 (US) Dual 2x2:2 MU-MIMO Radio Internal Antennas Unified Campus AP.
- Interface Ports : 1x 1 Gigabit Ethernet RJ45, 1x 1 Gigabit Ethernet PoE RJ45
- Wireless LAN Standard : IEEE 802.11ac
- Management Ports : 1x Reset Button, 1x RJ45 Console, 1x USB 2.0,
- Antenna Options : 2x Vertically polarized dual-band downtilt omnidirectional antennas for 2x2 MIMO with peak antenna gain of - 3.3dBi in 2.4GHz and 5.8dBi in 5GHz
- Power Options : Power over Ethernet (PoE) - 48Vdc (nominal) 802.3af compliant source | Direct DC source - 12Vdc nominal, +/- 5% - Power Sources not included
- Frequency : 2.4 GHz, 5 GHz
- Data Link Protocol : IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Concurrent Data Rate : 867 Mbps in the 5GHz band and 300 Mbps in the 2.4GHz band (for an aggregate peak data rate of 1.2Gbps)
- Capacity : BSSIDs per radio - 16, Wireless clients per Wi-Fi radio - 255
- Mounts : The AP ships with a (black) mount clips to attach to a 9/16- inch or 15/16-inch flat T-bar drop-tile ceiling (JW045A)
- Model Number : JZ321A
- Part Number : JZ321A, AP-303
- Condition : New

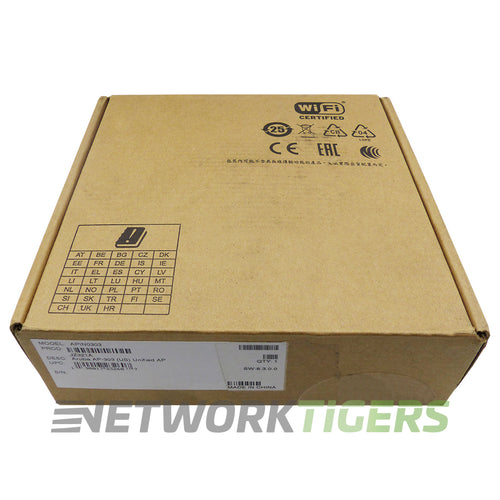

- One (1) NEW HPE Aruba JZ321A AP-303 (US) Dual 2x2:2 MU-MIMO Radio Internal Antenna WAP as described above
