The HPE Aruba JZ337A AP-535 (US) is a highly efficient dual-radio wireless access point that operates on both the 2.4 GHz and 5 GHz frequency bands. This AP offers an impressive aggregate bandwidth of up to 3.55 Gbps.
This access point utilizes MU-MIMO (Multi-User Multiple Input Multiple Output) and OFDMA (Orthogonal Frequency Division Multiple Access), enabling multiple devices to connect at once without reducing performance or speed.
Featuring a robust design, the AP-535 provides maximum data rates of 1.150 Mbps on the 2.4 GHz band and an astounding rate of up to 2.4 Gbps on the faster, less crowded 5GHz band.
Aruba JZ337A: Aruba AP-535 (US) Dual Radio 4x4:4 802.11ax Internal Antennas Unified Campus AP.
- Wi-Fi Standard : Wi-Fi 6 (802.11ax) - OFDMA - Bidirectional MU-MIMO (uplink and downlink in 5 GHz - downlink only in 2.4 GHz)
- Managed By : HPE Aruba Networking Central (cloud) or on-premises controller/gateway
- Suggested Use : Indoor enterprise campus environments
- Region : US
- Radios : Dual radio - 5 GHz 802.11ax 4x4 MIMO and 2.4 GHz 802.11ax 4x4 MIMO
- Spatial Streams per Radio : 4
- Maximum Data Rate : 2.97 Gbps combined (2.4 Gbps @ 5 GHz HE80 - 574 Mbps @ 2.4 GHz HE20)
- Bluetooth / IoT Radios : Bluetooth 5.0 BLE and Zigbee (802.15.4) - 2.4 GHz
- PoE Standard : 802.3at (class 4) or 802.3bt (class 5) (E0 and/or E1)
- DC Power Input : 48 Vdc nominal (+/-5%) - 1.35 mm / 3.5 mm center-positive circular plug - 9.5 mm length
- Uplink Ports : 2x 100/1000/2500/5000BASE-T HPE SmartRate RJ-45 (E0 and E1)
- Other Ports : 1x USB 2.0 Type-A (up to 1A/5W), 1x Serial console (micro-B USB)
- Antenna Type : Internal - 4x integrated dual-band downtilt omnidirectional - 3.5 dBi peak @ 2.4 GHz - 5.4 dBi peak @ 5 GHz - BLE/Zigbee integrated omnidirectional 3.1 dBi peak
- Antenna Ports : None - Internal antennas only
- Antenna Options : None - Fixed internal antennas
- Mounting Options : AP-OUT-MNT-V1A (Pole/Wall Long) - AP-270-MNT-H1 (Hanging/Tilt) - AP-270-MNT-H2 (Flush Wall/Ceiling) - AP-270-MNT-H3 (Hanging/Dual-Tilt) - all sold separately
- Mounts Included : Mounting bracket pre-installed on back of unit - additional mount kits sold separately
- Model Number : JZ337A
- Part Number : JZ337A, AP-535, AP-535-US
- Condition : New

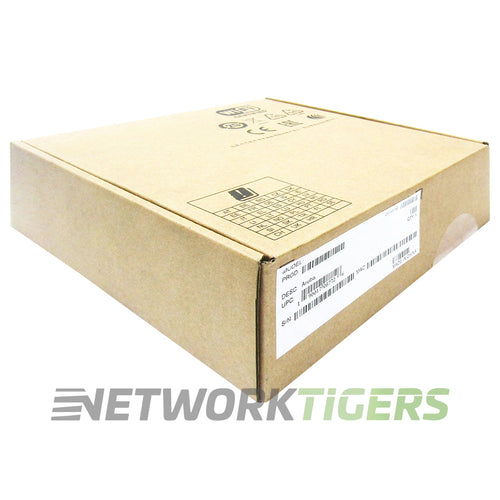

- One (1) NEW HPE Aruba AP-535 JZ337A Wi-Fi 6 802.11ax Internal Antenna Campus Wireless AP as described above
