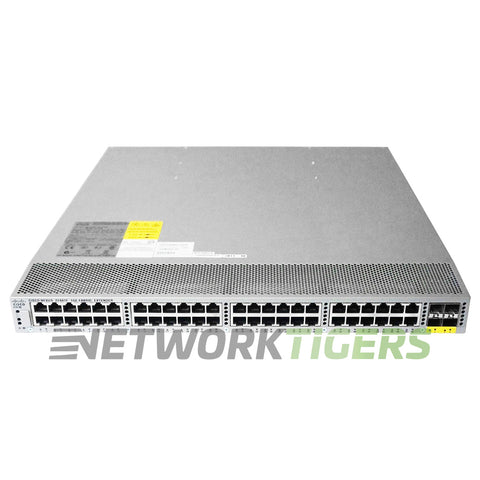

NEW Cisco N2K-C2248TF-E 48x 1GB RJ45 4x 10GB SFP+ B-F Air Fabric Extender
New

NEW Cisco N2K-C2248TF-E 48x 1GB RJ45 4x 10GB SFP+ B-F Air Fabric Extender

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-2043
UPC: 882658486401

Overview

The Cisco N2K-C2248TF-E Fabric Extender offers 48 1Gbps RJ45 ports and four 10GbE SFP+ uplinks, providing high-density connectivity for data centers.

Supporting a compact form factor, this device facilitates simplified connections to upstream Nexus switches while optimizing rack space usage. It uses Back-to-Front Airflow suitable for hot-aisle/cold-aisle setups in modern facilities. The unit operates under centralized management via parent switches with NX-OS software, reducing configuration complexity at the edge level.

Cisco N2K-C2248TF-E: Cisco Nexus 2248TP-E Series 1GE Fabric Extender, 2PS, 1 Fan Module, 48x100/1000Base-T + 4x10GE (includes 8 Fabric Extender Transceivers), 32MB buffer, Back-to-Front Airflow (Port Side Exhaust/ Forward Airflow).


Specifications

  • Network Ports : 48x 1 Gigabit Ethernet RJ45
  • Uplink Ports : 4x 10 Gigabit Ethernet SFP+
  • Management Ports : 1x Management/console HDMI
  • Bundled With : 8x FET-10G Fabric Extender Transceivers Included
  • AirFlow Direction : Back-to-Front Airflow (Port Side Exhaust/ Forward Airflow)
  • Fan Module Options : 1x N2K-C2248-FAN Fan Module Included
  • Power Supplies Included : 2x N2200-PAC-400W Power Supplies included
  • Fabric Speed : 40 Gbps in each direction (80 Gbps full duplex)
  • Model Number : N2K-C2248TF-E
  • Part Number : N2K-C2248TF-E, N2K-C2248TF-E=, N2K-C2248TF-E-WS
  • Condition : New


Included

  • One (1) NEW Cisco N2K-C2248TF-E 48x 1GB RJ45 4x 10GB SFP+ B-F Air Fabric Extender as described above
