NEW Cisco N2K-C2248TF-E 48x 1GB RJ45 4x 10GB SFP+ F-B Air Fabric Extender
New

NEW Cisco N2K-C2248TF-E 48x 1GB RJ45 4x 10GB SFP+ F-B Air Fabric Extender

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-0441
UPC: 882658486401

Overview

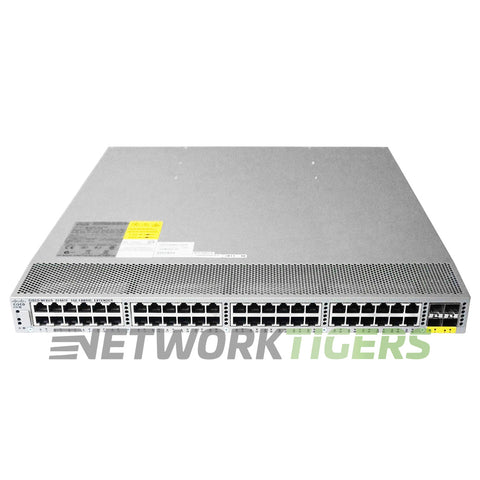

The Cisco N2K-C2248TF-E Fabric Extender offers 48 1Gbps RJ45 ports and four 10GbE SFP+ uplinks, providing high-density connectivity for data centers.

Supporting a compact form factor, this device facilitates simplified connections to upstream Nexus switches while optimizing rack space usage. It uses Back-to-Front Airflow suitable for hot-aisle/cold-aisle setups in modern facilities. The unit operates under centralized management via parent switches with NX-OS software, reducing configuration complexity at the edge level.

Cisco N2K-C2248TF-E: Cisco Nexus 2248TP-E Series 1GE Fabric Extender, 2PS, 1 Fan Module, 48x100/1000Base-T + 4x10GE (includes 8 Fabric Extender Transceivers), 32MB buffer, Back-to-Front Airflow (Port Side Exhaust/ Forward Airflow).


Specifications

  • Network Ports : 48x 1 Gigabit Ethernet RJ45
  • Uplink Ports : 4x 10 Gigabit Ethernet SFP+
  • Management Ports : 1x Management/console HDMI
  • Bundled With : 8x FET-10G Fabric Extender Transceivers
  • AirFlow Direction : Front-to-Back Airflow (Port Side Intake)
  • Fan Module Options : 1x N2K-C2248-FAN-B Fan Module Included
  • Power Supplies Included : 2x N2200-PAC-400W-B Power Supplies included
  • Fabric Speed : 40 Gbps in each direction (80 Gbps full duplex)
  • Model Number : N2K-C2248TF-E
  • Part Number : N2K-C2248TF-E, N2K-C2248TF-E=, N2K-C2248TF-E-WS
  • Condition : New

Datasheet

More information on this Cisco N2K-C2248TF-E.

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's web site or on the web. Software or firmware updates may be available through the manufacturer's website
