Cisco N3K-C36180YC-R 48x 25GB SFP+ 6x 100GB QSFP28 F-B Airflow (DC) Switch

Cisco N3K-C36180YC-R 48x 25GB SFP+ 6x 100GB QSFP28 F-B Airflow (DC) Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-8369
UPC: 889728021449

Overview

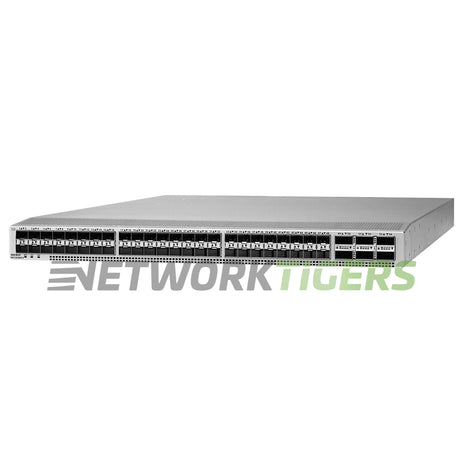

The Cisco N3K-C36180YC-R switch features 48 ports of 25GB SFP+ and 6 ports of 100GB QSFP28 for high-speed connectivity in data center environments. With a switching capacity of 1.8 Tbps and a forwarding rate of 1.67 Bpps, this switch is capable of handling heavy network traffic effectively.

The MAC Address Table Size supports up to 750,000 entries, providing ample space for device addressing within the network infrastructure. Designed with airflow optimized for data centers, the Cisco N3K-C36180YC-R offers reliable performance in demanding networking scenarios where efficiency is crucial. Whether deploying new applications or expanding existing networks, this switch delivers the speed and capacity necessary to support modern business operations efficiently.

Cisco N3K-C36180YC-R 48x 25GB SFP+ 6x 100GB QSFP28 F-B Airflow (DC) Switch


Specifications

  • Network Ports : 48x 25 Gigabit Ethernet SFP+
  • Uplink Ports : 6x 100 Gigabit QSFP28
  • Management Ports : 1x Gigabit Management, 1x RS-232 RJ45, 1x Console RJ45, 1x USB
  • AirFlow Direction : Front-to-Back Airflow (Port Side Intake Airflow)
  • Fan Module Options : 2x NXA-FAN-65CFM-PI Included
  • Power Supplies Included : 2x NXA-PHV-1100W-PI Included
  • Switching Capacity : 1.8 Tbps
  • Forwarding Rate : 1.67 Bpps
  • MAC Address Table Size : 750,000
  • Model Number : N3K-C36180YC-R
  • Part Number : N3K-C36180YC-R, N3K-C36180YC-R=, N3K-C36180YC-R-WS
  • Condition : Seller refurbished

Datasheet

More information on this Cisco N3K-C36180YC-R.

Included

  • One (1) Seller Refurbished Cisco N3K-C36180YC-R 48x 25GB SFP+ 6x 100GB QSFP28 F-B Airflow (DC) Switch as described above
  • Two (2) DC Power Supplies Included
  • Two (2) Fan Modules Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
  • Rack Mount Rails Not Included
