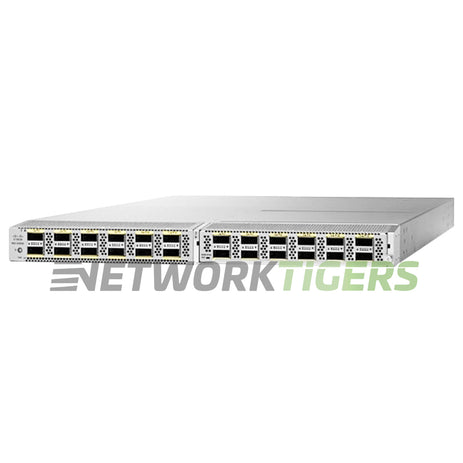

Cisco N5624-B-24Q 24x 40GB QSFP+ Front-to-Back Airflow Switch

Cisco N5624-B-24Q 24x 40GB QSFP+ Front-to-Back Airflow Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-7102
UPC: 882658795145

Overview

The Cisco N5624-B-24Q switch offers 24 ports of 40GB QSFP+ connectivity with front-to-back airflow design, ensuring efficient cooling in data center environments. With a switching capacity of 1.92 Tbps, this switch provides high-performance networking for large-scale deployments.

The compact form factor makes it ideal for space-constrained installations while maintaining robust functionality and reliability. Designed to meet the demands of modern networking applications, the Cisco N5624-B-24Q delivers seamless integration into existing infrastructures without compromising performance or scalability.

This switch is cost-effective for organizations upgrading their network capabilities without sacrificing quality or efficiency.

Cisco Nexus N5624-B-24Q: Nexus 5624Q chassis 24 x 40GE Ports/FCoE Bundle; 2PSU, 3 FAN (includes 1 GEM.


Specifications

  • Network Ports : 24x 40 Gigabit Ethernet QSFP+ (12x of these ports are through the N5600-M12Q GEM module)
  • Management Ports : 1x Console RJ45, 1x RJ45 Out of Band Management, 1x USB
  • Module Slots and Options : 1x Generic Expansion Module (GEM) Slot - 1x N5600-M12Q is included (see "Network Ports")
  • Fan Modules AirFlow Direction : 3x N6K-C6001-FAN-B Fan Modules - Front-to-Back Airflow (Port Side Intake)
  • Power Supplies Included : 2x PSU - Front-to-Back Airflow (Port Side Intake)
  • Switching Capacity : 1.92 Tbps
  • Rack Mounts : Included (1-RU)
  • Model Number : N5624-B-24Q
  • Part Number : N5624-B-24Q, N5624-B-24Q=, N5624-B-24Q-WS
  • Condition : Seller refurbished

Datasheet

More information on this Cisco N5624-B-24Q.

Included

  • One (1) Seller refurbished Cisco N5624-B-24Q 24x 40GB QSFP+ Front-to-Back Airflow Switch as described above
  • Two (2) Power Cords Included
  • Two (2) AC Power Supplies Included
  • Three (3) Fan Modules Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
