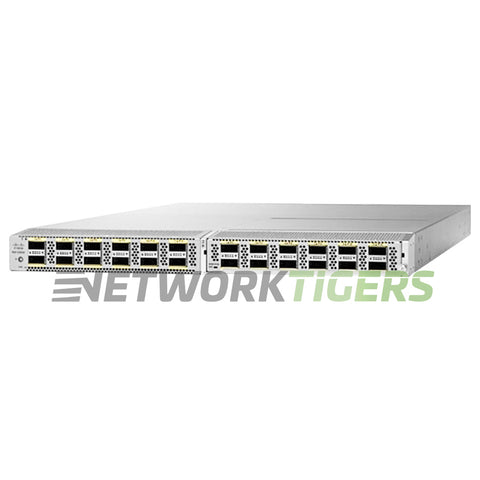

NEW Cisco N5624-B-24Q 24x 40GB QSFP+ Back-to-Front Airflow Switch
New

NEW Cisco N5624-B-24Q 24x 40GB QSFP+ Back-to-Front Airflow Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-0329
UPC: 882658795145

Overview

The Cisco N5624-B-24Q switch is a high-performance solution for data centers requiring 40GB QSFP+ connectivity. With a switching capacity of 1.92 Tbps and a forwarding rate of 1428 Mpps, this switch delivers fast and reliable performance for demanding network environments.

The low-latency design ensures consistent traffic latency regardless of packet size or features enabled on Ethernet interfaces. With a buffer size of 25 MB per port, the N5624-B-24Q can easily handle large volumes of data.

Featuring an impressive MAC address table size of 256,000 entries, this switch provides ample room for device connections in growing networks. The back-to-front airflow design allows for efficient cooling within rack-mounted systems while maintaining optimal performance levels under heavy workloads.

Cisco Nexus N5624-B-24Q: Nexus 5624Q chassis 24 x 40GE Ports/FCoE Bundle; 2PSU, 3 FAN (includes 1 GEM.


Specifications

  • Network Ports : 24x 40 Gigabit Ethernet QSFP+ (12x of these ports are through the N5600-M12Q GEM module)
  • Management Ports : 1x Console RJ45, 1x RJ45 Out of Band Management, 1x USB
  • Module Slots : 1x Generic Expansion Module (GEM) Slot - 1x N5600-M12Q is included (see "Network Ports")
  • AirFlow Direction : Back-to-Front Airflow (Port Side Exhaust)
  • Fan Module Options : 3x N6K-C6001-FAN-F Fan Modules
  • Power Supplies Included : 2x NXA-PAC-1100W-B PSU
  • Switching Capacity : 1.92 Tbps
  • Forwarding Rate : 1428 Mpps
  • MAC Address Table Size : 256,000
  • Latency : Low-latency of approximately 1 microsecond using cut-through forwarding for predictable, consistent traffic latency regardless of packet size, traffic pattern, or features enabled on 40 and 10 Gigabit Ethernet interfaces
  • Buffer : 25 MB buffer per 12x 10 Gigabit SFP+ ports or 3x 40 Gigabit QSFP ports
  • Model Number : N5624-B-24Q
  • Part Number : N5624-B-24Q, N5624-B-24Q=, N5624-B-24Q-WS
  • Condition : New


Included

  • One (1) NEW Cisco N5624-B-24Q 24x 40GB QSFP+ Back-to-Front Airflow Switch as described above
