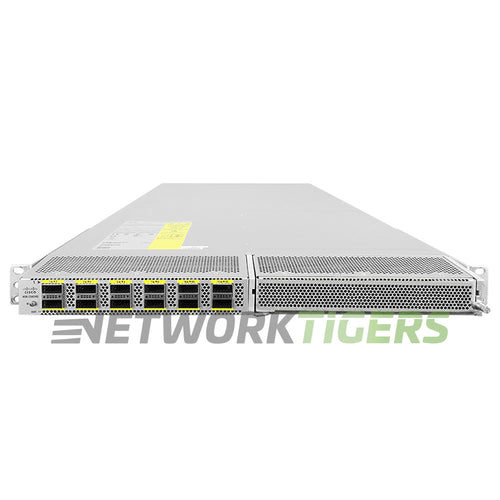

Cisco N5K-C5624Q 12x 40GB QSFP+ 1x GEM Slot Front-to-Back Air Switch Chassis

Cisco N5K-C5624Q 12x 40GB QSFP+ 1x GEM Slot Front-to-Back Air Switch Chassis

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-7101
UPC: 882658783586

Overview

The Cisco N5K-C5624Q is a high-performance switch designed for data center networks. With its 12x 40GB QSFP+ ports and GEM slot, this switch offers excellent connectivity options for demanding network environments.

Featuring a potential switching capacity of 1.92 Tbps and a potential forwarding rate of 1428 Mpps (million packets per second), the N5K-C5624Q ensures fast and efficient data transfer within your network infrastructure.

This front-to-back air switch chassis is built to optimize airflow, ensuring proper cooling in rack installations. Designed by Cisco, known for its reliable networking solutions, you can trust the quality and durability of this product.

Cisco Nexus N5K-C5624Q: Nexus 5624Q Chassis 2PSU, 3 FAN, No GEM. Front-to-Back Airflow (Port Side Intake).


Specifications

  • Network Ports : 12x 40 Gigabit Ethernet QSFP+
  • Management Ports : 1x Console RJ45, 1x RJ45 Out of Band Management, 1x USB
  • Module Slots and Options : 1x Generic Expansion Module (GEM) Slot - Module is not included - ordered separately
  • Fan Modules AirFlow Direction : 3x N6K-C6001-FAN-B Fan Modules - Front-to-Back Airflow (Port Side Intake)
  • Power Supplies Included : 2x 1100W PSU - Front-to-Back Airflow (Port Side Intake)
  • Switching Capacity : 1.92 Tbps
  • Forwarding Rate : 1428 Mpps
  • Rack Mounts : Included (1-RU)
  • Model Number : N5K-C5624Q
  • Part Number : N5K-C5624Q, N5K-C5624Q=, N5K-C5624Q-WS
  • Condition : Seller refurbished

Datasheet

More information on this Cisco N5K-C5624Q.

Included

  • One (1) Seller Refurbished Cisco N5K-C5624Q 12x 40GB QSFP+ 1x GEM Slot Front-to-Back Air Switch Chassis as described above
  • Two (2) Power Cords Included
  • Two (2) AC Power Supplies Included
  • Three (3) Fan Modules Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
