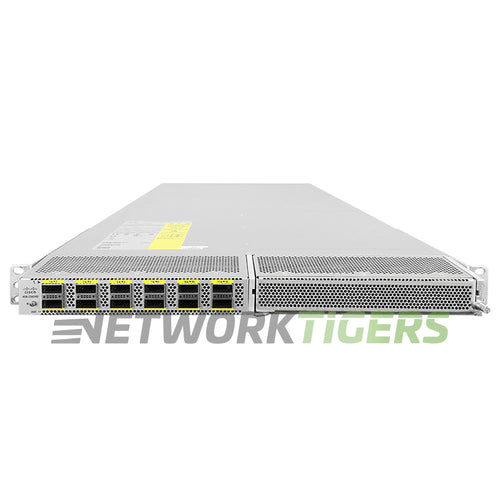

NEW Cisco N5K-C5624Q 12x 40GB QSFP+ 1x GEM Slot Front-to-Back Air Switch Chassis
New

NEW Cisco N5K-C5624Q 12x 40GB QSFP+ 1x GEM Slot Front-to-Back Air Switch Chassis

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-0327
UPC: 882658783586

Overview

The Cisco N5K-C5624Q switch offers high-performance connectivity with 12x 40GB QSFP+ ports and a GEM slot in a front-to-back air chassis design. With a PoE budget, this switch provides up to 25 MB buffer per port for smooth data transmission.

The switching capacity of 1.92 Tbps ensures efficient network operations, while the MAC address table size of 256,000 allows for easy management of connected devices. Low-latency cut-through forwarding technology guarantees consistent traffic performance regardless of packet size or features enabled on Ethernet interfaces. Ideal for data-intensive environments requiring reliable and fast networking solutions.

Cisco Nexus N5K-C5624Q: Nexus 5624Q Chassis 2PSU, 3 FAN, No GEM. Front-to-Back Airflow (Port Side Intake).


Specifications

  • Network Ports : 12x 40 Gigabit Ethernet QSFP+
  • Management Ports : 1x Console RJ45, 1x RJ45 Out of Band Management, 1x USB
  • Module Slots and Options : 1x Generic Expansion Module (GEM) Slot - Module is not included - ordered separately
  • Fan Modules AirFlow Direction : 3x N6K-C6001-FAN-B Fan Modules - Front-to-Back Airflow (Port Side Intake)
  • Power Supplies Included : 2x NXA-PAC-1100W PSU - Front-to-Back Airflow (Port Side Intake)
  • Buffer : 25 MB buffer per 12x 10 Gigabit SFP+ ports or 3x 40 Gigabit QSFP ports
  • Switching Capacity : 1.92 Tbps
  • Forwarding Rate : 1428 Mpps
  • MAC Address Table Size : 256,000
  • Latency : Low-latency of approximately 1 microsecond using cut-through forwarding for predictable, consistent traffic latency regardless of packet size, traffic pattern, or features enabled on 40 and 10 Gigabit Ethernet interfaces
  • Rack Mounts : Included (1-RU)
  • Model Number : N5K-C5624Q
  • Part Number : N5K-C5624Q, N5K-C5624Q=, N5K-C5624Q-WS
  • Condition : New


Included

  • One (1) NEW Cisco N5K-C5624Q 12x 40GB QSFP+ 1x GEM Slot Front-to-Back Air Switch Chassis as described above
