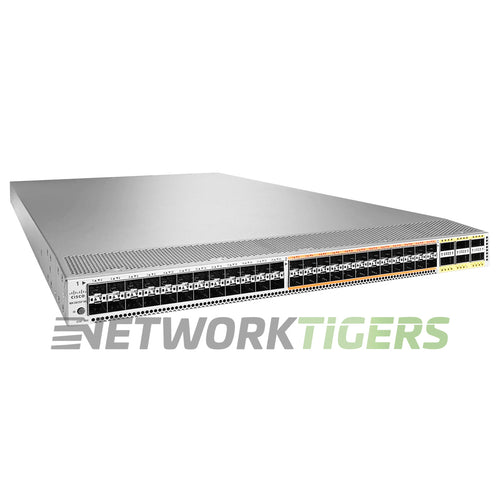

Cisco N5K-C5672UP-16G 48x 10GB SFP+ (24x UP) 6x 40GB QSFP+ F-B Airflow Switch

Cisco N5K-C5672UP-16G 48x 10GB SFP+ (24x UP) 6x 40GB QSFP+ F-B Airflow Switch

$ 6,127.99
$ 4,427.99
Only 1 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-7097
UPC: 882658810695

Overview

The Cisco N5K-C5672UP-16G is a high-performance network switch designed for data centers and enterprise environments. With 48x 10GB SFP+ ports (24 of which are UP) and 6x 40GB QSFP+ ports, this switch provides flexibility in connecting various devices with different bandwidth requirements.

Featuring a switching capacity of up to 1.44 Tbps, the N5K-C5672UP-16G can handle large traffic volumes efficiently. It has a MAC Address Table Size of 256,000 entries, enabling it to support extensive networking configurations without reducing performance.

With its low latency rate of only1 microsecond and an impressive forwarding rateof1071 Mpps for 64-byte packets,theN5KC-G672UP-166 ensures smooth and seamless data transmission.

Cisco Nexus N5K-C5672UP-16G: 48x fixed 10 Gigabit Ethernet SFP+ ports with 24 of the 48 ports being unified, and 6 fixed 40 Gigabit Ethernet QSFP+ ports with 10 and 40 Gigabit Ethernet FCoE support on all respective ports and 2/4/8/16-Gbps Fibre Channel on all the unified ports. The first 24 ports can support 1G Ethernet. Front-to-Back Airflow (Port Side Intake).


Specifications

  • Network Ports : 48x 10 Gigabit Ethernet SFP+ (24x are Unified ports (UP) that support 16-, 8-, 4-, and 2-Gbps Fibre Channel)
  • Uplink Ports : 6x 40 Gigabit Ethernet QSFP+
  • Management Ports : 1x Console RJ45, 1x Gigabit Ethernet Management RJ45, 1x USB
  • Fan Modules AirFlow Direction : 3x N6K-C6001-FAN-B - Fan Modules (2+1 Redundancy) - Front-to-Back Airflow (Port Side Intake)
  • Power Supplies Included : 2x N55-PAC-1100W-B - AC Power Supply (1+1 redundancy) - Front-to-Back Airflow (Port Side Intake)
  • Switching Capacity : 1.44 Tbp
  • Forwarding Rate : 1071 Mpps (64-byte packets)
  • MAC Address Table Size : 256 000
  • Latency : 1 microsecond
  • Rack Mounts : Included (1-RU)
  • Model Number : N5K-C5672UP-16G
  • Part Number : N5K-C5672UP-16G, N5K-C5672UP-16G=, N5K-C5672UP-16G-WS
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Cisco N5K-C5672UP-16G 48x 10GB SFP+ (24x UP) 6x 40GB QSFP+ F-B Airflow Switch as described above
  • Two (2) Power Cords Included
  • Two (2) AC Power Supplies Included
  • Three (3) Fan Modules Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
