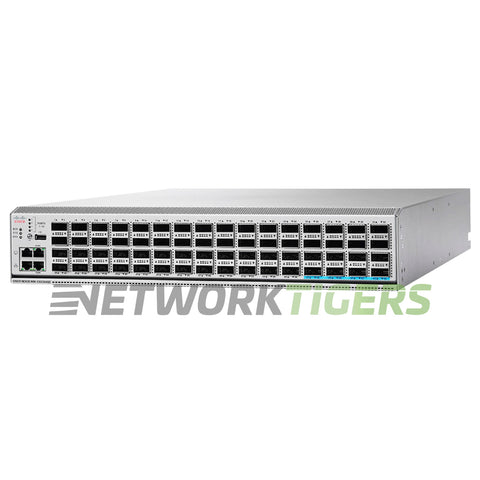

NEW Cisco N9K-C92304QC 56x 40GB QSFP+ 8x 100GB QSFP28 Front-to-Back Air Switch
New

NEW Cisco N9K-C92304QC 56x 40GB QSFP+ 8x 100GB QSFP28 Front-to-Back Air Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-8178

Overview

The Cisco N9K-C92304QC switch offers a switching capacity of 6.1 Tbps and a forwarding rate of 4.8 Bpps, making it ideal for network environments requiring fast data processing. This front-to-back air switch features 56 ports at 40GB QSFP+ speed and an additional eight ports at the faster 100GB QSFP28 speed.

With a MAC Address Table Size of up to 92,000 entries, this switch can efficiently handle large network traffic while maintaining optimal operations. Customer benefits include adaptability as per changing business needs through upgradation options provided within this mode,

Ordering from authorized suppliers ensures original products that meet industry standards, scaled levels such as regulatory compliance and then matched requirements by customer’s networking setup are assured

Cisco Nexus N9K-C92304QC: Nexus 9200 with 56 40G QSFP+ ports and a further 8 100G QSFP28 ports. This product comes with 2 PSU's.


Specifications

  • Network Ports : 56x 40 Gigabit Ethernet QSFP+
  • Uplink Ports : 8x 100 Gigabit Ethernet QSFP28
  • Management Ports : 3x RJ45 Management, 1x USB, 1x RS-232
  • AirFlow Direction : Front-to-Back Airflow (Port Side Intake / Reversed Airflow)
  • Fan Module Options : 2x N9K-C9300-FAN3 Fan Modules Included
  • Power Supplies Included : 2x NXA-PAC-1200W-PI PSU's Included
  • Switching Capacity : 6.1 Tbps
  • Forwarding Rate : 4.8 Bpps
  • MAC Address Table Size : 92,000
  • Model Number : N9K-C92304QC
  • Part Number : N9KC9300RMK, N9K-C92304QC, N9K-C92304QC=, N9K-C92304QC-WS
  • Condition : New


Included

  • One (1) NEW Cisco N9K-C92304QC 56x 40GB QSFP+ 8x 100GB QSFP28 Front-to-Back Air Switch as described above
