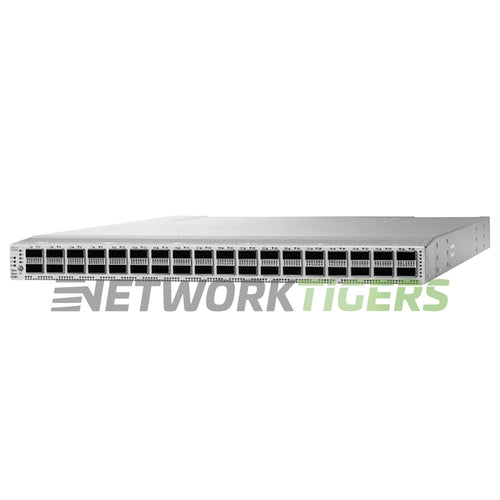

Cisco N9K-C9236C 36x 100GB QSFP28 Front-to-Back Airflow Switch

Cisco N9K-C9236C 36x 100GB QSFP28 Front-to-Back Airflow Switch

$ 8,156.99
$ 1,689.99
8 in stock
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.   Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-6908
UPC: 882658902888

Overview

The Cisco N9K-C9236C switch offers high-speed connectivity with its 36x 100GB QSFP28 ports and switching capacity of 7.2 Tbps. Its front-to-back airflow allows cabling on the warm corridor. With a MAC address table size of up to 92,000 entries, this switch can manage large networks effectively.

Featuring a forwarding rate of 5.3 Bpps, the Cisco N9K-C9236C enables fast packet delivery for seamless network performance. This switch is ideal for organizations upgrading their networking infrastructure to support growing bandwidth demands.

Cisco Nexus N9K-C9236C: Nexus 9200 with 36 100 Gigabit Ethernet QSFP28 ports and 2 PSU's.


Specifications

  • Network Ports : 36x 100 Gigabit Ethernet QSFP28
  • Port Supported Speeds : 1, 10, 25, 40, 50, and 100 Gbps
  • Management Ports : 3x RJ45 Management, 1x RS-232 Serial, 1x USB
  • SSD : 64 GB
  • System Memory : 16 GB
  • AirFlow Direction : Front-to-Back Airflow (Port Side Intake / Reversed Airflow)
  • Fan Modules : 4x NXA-FAN-30CFM-B Fan Modules Included
  • Power Supplies : 2x NXA-PAC-650W-PI PSU's Included
  • Switching Capacity : 7.2 Tbps
  • Forwarding Rate : 5.3 Bpps
  • MAC Address Table Size : 92,000
  • Number of LPM Routes : Default = 6,000, LPM heavy mode = 262,000
  • Multicast Routes : Shipping = 8,000, Maximum = 32,000
  • VLANs Supported : 3,967
  • Packet Buffer : 30 MB
  • CPU : 4 cores
  • Model Number : N9K-C9236C
  • Part Number : N9K-C9236C, N9K-C9236C=, N9K-C9236C-WS
  • Condition : Seller refurbished

Datasheet

More information on this Cisco N9K-C9236C.

Included

  • One (1) Seller Refurbished Cisco N9K-C9236C 36x 100GB QSFP28 Front-to-Back Airflow Switch as described above
  • Two (2) Power Cords Included
  • Two (2) AC Power Supplies Included
  • Four (4) Fan Modules Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
  • Rack Mount Brackets/Rails Not Included
