The Cisco N9K-C9316D-GX Nexus 9300-GX is a high-performance switch that supports modern networking requirements. It offers 16x QSFP-DD ports with a capacity of up to 400GB, making it ideal for bandwidth-intensive applications.
One key feature of this switch is its support for standards-based VXLAN EVPN fabrics, including hierarchical multi-site capabilities. This enables seamless connectivity and efficient workload distribution across multiple sites.
With three-tier BGP architectures, the N9K-C9316D-GX can create horizontal and non-blocking IPv6 network fabrics at a web scale. This ensures scalability and flexibility in managing large networks efficiently.
The switch supports up to 896,000 IPv4 Longest Prefix Match (LPM) routes. Combined with its MAC Address Table Size of 256k entries, the device offers robust forwarding capabilities essential for demanding environments.

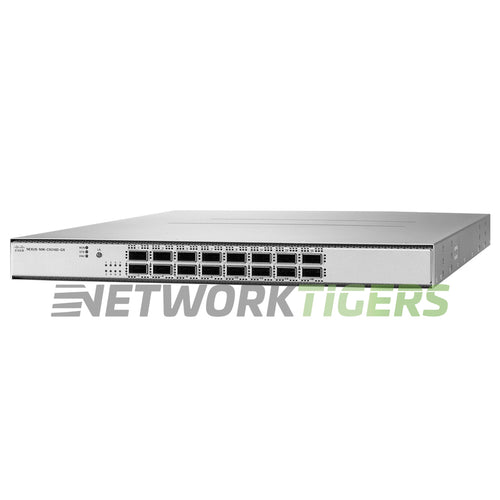

Cisco N9K-C9316D-GX: Nexus 9316D Spine switch with 16p 400/100G QSFP-DD
- Network Ports : 16x 400 Gigabit Ethernet QSFP-DD ports
- Port Supported Speeds : 40/100/400-Gbps Ethernet, Breakout supported on all ports, 1-16 - 2x200, 4x100, 2x100, 8x50, 4x50, 2x50, 4x25, 4x10, 10G w/QSA
- Management Ports : 1x RJ45 and 1x SFP, 1x USB, 1x RS232
- SSD : 128 GB
- AirFlow Direction : Front-to-Back Airflow
- Fan Modules Included : 6x NXA-FAN-35CFM-PI Fan Modules Included
- Fan Module Options : NXA-FAN-35CFM-PI (F-B Airflow), NXA-FAN-35CFM-PE (B-F Airflow)
- Power Supplies Included : 2x NXA-PAC-1100W-PI2 PSU Included
- Power Supply Options : Port side intake - NXA-PAC-1100W-PI2 (AC-Spare), NXA-PDC-1100W-PI2 (DC-Spare) NXA-PHV-1100W-PI (HV-AC-DC), Port side Exhaust - NXA-PAC-1100W-PE2 (AC-Spare), NXA-PDC-1100W-PE2 (DC-Spare) NXA-PHV-1100W-PE (HV-AC-DC),
- Switching Capacity : 12.8 Tbps
- Forwarding Rate : 4.3 Bpps
- MAC Address Table Size : 256,000
- Max IPv4 Host Entries : 896,000 (Longest Prefix Match)
- Max IPv4 LPM Routes : 896,000
- Multicast routes : 32,000
- Virtual interfaces (VLANs) : 4096 (Max)
- Packet Buffer : 80 MB
- DRAM and Flash : 32 GB (DRAM), System Buffer - 80 MB, CPU - 4 Core
- Model Number : N9K-C9316D-GX
- Part Number : N9K-C9316D-GX, N9K-C9316D-GX=, N9K-C9316D-GX-WS
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco N9K-C9316D-GX Nexus 9300-GX 16x 400GB QSFP-DD F-B Airflow Switch as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- Six (6) Fan Modules Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer\'s website or the web. Software or firmware updates may be available through the manufacturer\'s website - Rack Mount Brackets/Rails Not Included
