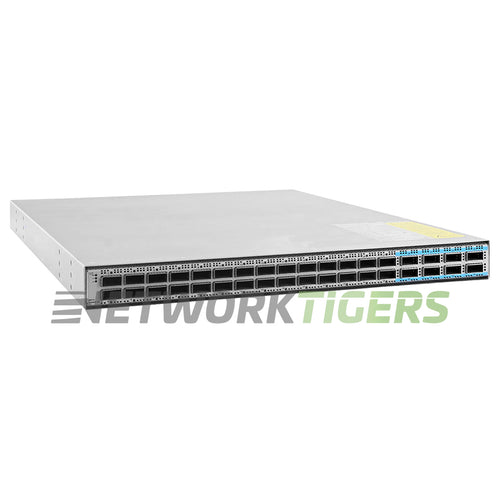

Cisco N9K-C93600CD-GX 28x 100GB QSFP28 8x 400GB QSFP-DD F-B Airflow Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-2130

Overview

The Cisco N9K-C93600CD-GX is a 28-port 100GB QSFP28 and 8-port 400GB QSFP-DD F-B Airflow switch. This high-speed, low-latency device offers reliable connectivity for data centers requiring fast transmission speeds.

This Cisco switch is ideal for large-scale networking environments that demand high performance and scalability. With its mix of ports supporting both current and future interface standards, it provides flexibility for various network setups. The compact form factor allows for efficient use of rack space while ensuring optimal airflow to keep components cool during operation.

Cisco N9K-C93600CD-GX: Nexus 93600CD Spine and Leaf switch with 28p 100/40G QSFP28 and 8p 400/100G QSFP-DD.


Specifications

  • Network Ports : 28x 100 Gigabit Ethernet QSFP28
  • Uplink Ports : 8x 400 Gigabit Ethernet QSFP-DD
  • Management Ports : 1x RJ-45 Management, 1x SFP Management, 1x USB, 1x RS-232,
  • System Memory : System Memory = 32GB, SSD = 128GB
  • AirFlow Direction : Front-to-Back Airflow (Port Side Intake)
  • Fan Modules : 6x NXA-FAN-35CFM-PI Fan Modules Included
  • Power Supplies : 2x NXA-PAC-1100W-PI2 PSU Included
  • Switching Capacity : 12 Tbps
  • Forwarding Rate : 4.0 Bpps
  • MAC Address Table Size : 256,000
  • Max IPv4 LPM Routes : 896,000
  • Max IPv6 LPM Routes : 448,000
  • Max IPv4 Host Routes : 896,000
  • Multicast Routes : 32,000
  • VLANs Supported : 4096
  • Packet Buffer : 80 MB
  • CPU : 4-Core
  • Model Number : N9K-C93600CD-GX
  • Part Number : N9K-C93600CD-GX
  • Condition : Seller refurbished

Datasheet

More information on this Cisco N9K-C93600CD-GX.

Included

  • One (1) Seller refurbished Cisco N9K-C93600CD-GX 28x 100GB QSFP28 8x 400GB QSFP-DD F-B Airflow Switch as described above
  • Two (2) Power Cords Included
  • Two (2) AC Power Supplies Included
  • Six (6) Fan Modules Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
  • Rack Mount Rails Not Included
