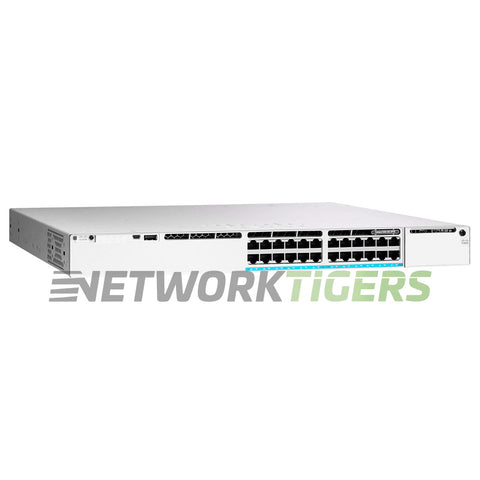

The Cisco C9300-24UB-E Catalyst 9300 is a powerful switch designed for high-density network deployments. With 24x1GB UPoE RJ45 ports and one module slot, it offers flexibility in connectivity options. The switching capacity of this switch is an impressive 208 Gbps, ensuring fast and reliable data transmission.
With a PoE budget of up to 830W (which can be increased with additional power supply units), the C9300-24UB-E can support various powered devices such as IP phones, wireless access points, and surveillance cameras without requiring separate power sources.
This Cisco switch also boasts a large MAC address table size of 32,000 entries which enables efficient handling of network traffic from multiple connected devices.
Cisco C9300-24UB-E: Catalyst 9300 24x 1Gb RJ45 UPOE, Network Essentials.
- Network Ports : 24x 1 Gigabit Ethernet UPoE+ RJ45
- Management Ports : 1x RJ45, 1x USB 2.0, 1x Mini USB
- Stacking Ports : 2x StackWise 480 Ports (480 Gbps Stacking Bandwidth), 2x StackPower Ports - Cables sold separately - Cable Options are STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M, CAB-SPWR-30CM, CAB-SPWR-150CM
- Module Slots and Options : 1x Expansion Module Slot - None included.
- Firmware Version : Network Essentials
- Fan Modules AirFlow Direction : 3x FAN-T2 Fan Modules Included
- Power Supplies Included : 1x PWR-C1-1100WAC 1100W AC PSU Included - 2x PSU Slots - 2nd PSU ordered separately - Options for 2nd PSU are PWR-C1-1100WAC, PWR-C1-715WAC, PWR-C1-350WAC
- PoE Budget : 830W (1180W with 350W 2nd PSU, 1440W with 715W 2nd PSU, 1440W with 1100W 2nd PSU)
- Switching Capacity : 208 Gbps (688 Gbps with Stacking)
- Forwarding Rate : 154.76 Mpps (511.90 Mpps with Stacking)
- MAC Address Table Size : 32,000
- Expansion Module Options : C9300-NM-4G, C9300-NM-8X, C9300-NM-2Q, C9300-NM-4M, C9300-NM-2Y - Please note - Existing 3850 network modules are also supported in the Cisco Catalyst 9300 Series platforms.
- Rack Mounts : Included (1-RU)
- Stack Members : Up to eight switches can be connected in the stack | Supported stack members = Other C9300 SKUs with same license level - C9300 higher scale SKUs only stack with other like higher scale models
- Model Number : C9300-24UB-E
- Part Number : C9300-24UB-E, C9300-24UB-E=, C9300-24UB-E-WS
- Condition : New
- One (1) NEW Cisco C9300-24UB-E Catalyst 9300 24x 1GB UPoE RJ45 1x Module Slot Switch as described above
