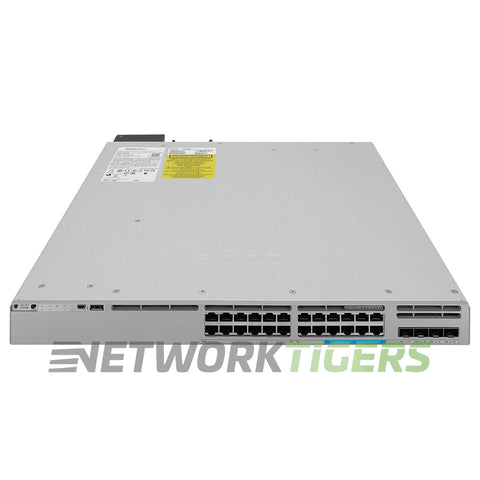

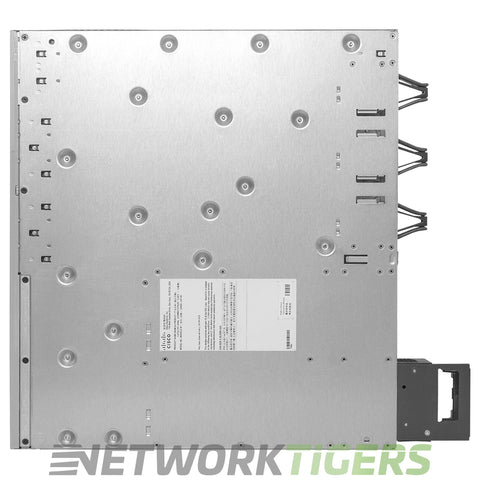

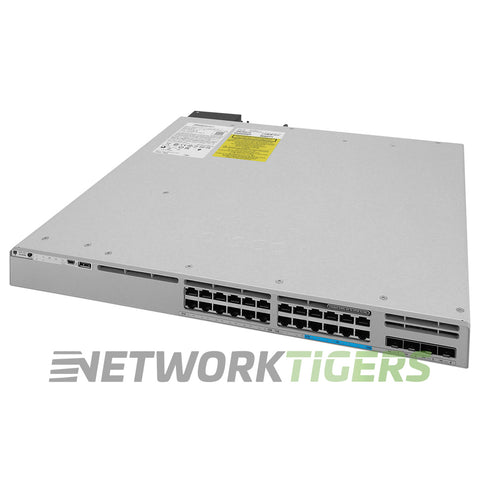

NEW Cisco C9300L-24UXG-4X-A 24x 1GB UPoE RJ45 (8x MultiGB) 4x SFP+ Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-5294
UPC: 889728174084

Overview

The NEW Cisco C9300L-24UXG-4X-A is a versatile and powerful switch designed for modern network environments. It features 24x 1GB UPoE RJ45 connectivity ports, with an additional 8x ports supporting MultiGB speeds. The switch also includes 4 SFP+ slots for fiber optic connections.

With a PoE budget of up to 880W, this switch can provide power to devices such as IP cameras or wireless access points without needing separate power sources. Its switching capacity is impressive at 272 Gbps (or up to 592 Gbps when stacked), allowing for fast and efficient data transfer within your network.

The Cisco C9300L supports a forwarding rate of over 202 Mpps, ensuring smooth performance even during high traffic. This reliable device boasts a MAC Address Table Size capable of holding 32,000 entries to support large networks with multiple connected devices.

NEW Cisco C9300L-24UXG-4X-A 24x 1GB UPoE RJ45 (8x MultiGB) 4x SFP+ Switch


Specifications

  • Network Ports : 16x 1 Gigabit Ethernet UPOE RJ45, 8x MultiGigabit RJ45 (100M/1G/2.5G/5G/10G)
  • Uplink Ports : 4x 10 Gigabit Ethernet SFP+
  • Management Ports : 2x USB, 1x Mini USB
  • Stack Technology : StackWise-320 (Optional Stacking Hardware - C9300L-STACK-KIT - ordered separately)
  • Supported Stack Members : Other C9300L SKUs with same license level (Number of Members - 8)
  • Firmware Version : Network Advantage
  • Fan Modules AirFlow Direction : 3x FAN-T2 Modules Included

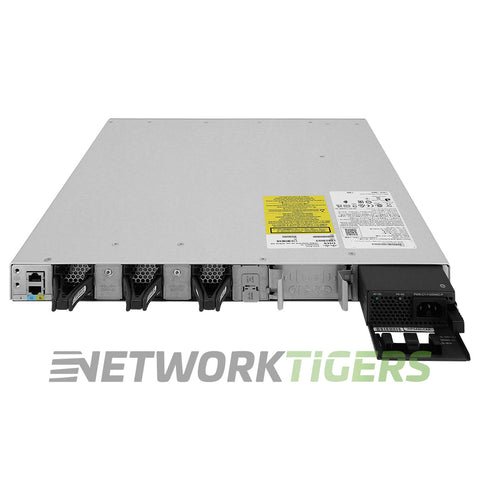

  • Power Supplies Included : 1x PWR-C1-1100WAC-P Included - 2nd Power Supply ordered separately.
  • PoE Budget : 880W
  • Switching Capacity : 272 Gbps (Switching Capacity with Stacking - 592 Gbps )
  • Forwarding Rate : 202.38 Mpps
  • MAC Address Table Size : 32,000
  • Rack Mounts : Included (1-RU)
  • Model Number : C9300L-24UXG-4X-A
  • Part Number : C9300L-24UXG-4X-A, C9300L-24UXG-4X-A=, C9300L-24UXG-4X-A-WS
  • Condition : New


Included

  • One (1) NEW Cisco C9300L-24UXG-4X-A 24x 1GB UPoE RJ45 (8x MultiGB) 4x SFP+ Switch as described above
