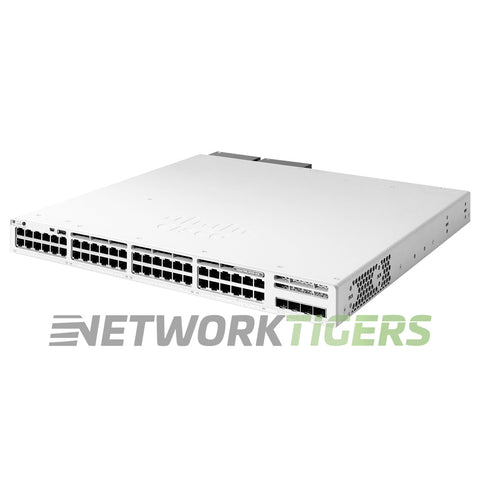

NEW Cisco C9300L-48PF-4X-A 48x 1GB Full PoE+ RJ45 4x 10GB SFP+ Switch
New

NEW Cisco C9300L-48PF-4X-A 48x 1GB Full PoE+ RJ45 4x 10GB SFP+ Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-6530
UPC: 889728257824

Overview

The Cisco C9300L-48PF-4X-A is a high-performance switch designed for enterprise networks. With its 48x 1GB full PoE+ RJ45 ports and 4x 10GB SFP+ uplinks, this switch provides ample connectivity options for devices requiring Power over Ethernet.

Featuring a robust PoE budget of 890W, the C9300L can power multiple network endpoints, such as IP phones and wireless access points, without needing separate power sources. Its switching capacity of 176 Gbps (or an impressive 496 Gbps with stacking) ensures fast data transfer within your network.

With a forwarding rate of up to 130.95 Mpps (or 369.05 Mpps with stacking), data packets are efficiently processed and forwarded, reducing latency in mission-critical applications. This switch boasts a MAC address table size that supports up to 32,000 addresses, allowing it to handle large-scale deployments easily.

Cisco C9300L-48PF-4X-A: Catalyst 9300 48-port fixed uplinks Full PoE+, 4X10G uplinks


Specifications

  • Network Ports : 48x Gigabit Ethernet Full PoE+ RJ45
  • Uplink Ports : 4x 10 Gigabit Ethernet SFP+
  • Management Ports : 2x USB, 1x Mini USB
  • Stack Technology : StackWise-320 (Optional Stacking Hardware - C9300L-STACK-KIT - ordered separately)
  • Supported Stack Members : Other C9300L SKUs with same license level (Number of Members - 8)
  • Switch Version : Network Advantage
  • Fan Module Options : 3x FAN-T2 Modules Included
  • Power Supplies Included : 1x PWR-C1-1100WAC-P Included - 2x Slots - 2nd Power Supply ordered separately.
  • PoE Budget : 890W
  • Switching Capacity : 176 Gbps (Switching Capacity with Stacking - 496 Gbps)
  • Forwarding Rate : 130.95 Mpps (Forwarding Rate with Stacking - 369.05 Mpps)
  • MAC Address Table Size : 32,000
  • : Included (1-RU)
  • Model Number : C9300L-48PF-4X-A
  • Part Number : C9300L-48PF-4X-A, C9300L-48PF-4X-A=, C9300L-48PF-4X-A-WS
  • Condition : New


Included

  • One (1) NEW Cisco C9300L-48PF-4X-A 48x 1GB Full PoE+ RJ45 4x 10GB SFP+ Switch as described above
