NEW Cisco N9K-C93108TC-FX3P 48x MultiGB UPoE RJ-45 6x 100GB QSFP28 BF Air Switch
New

NEW Cisco N9K-C93108TC-FX3P 48x MultiGB UPoE RJ-45 6x 100GB QSFP28 BF Air Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-0629
UPC: 889728265058

Overview

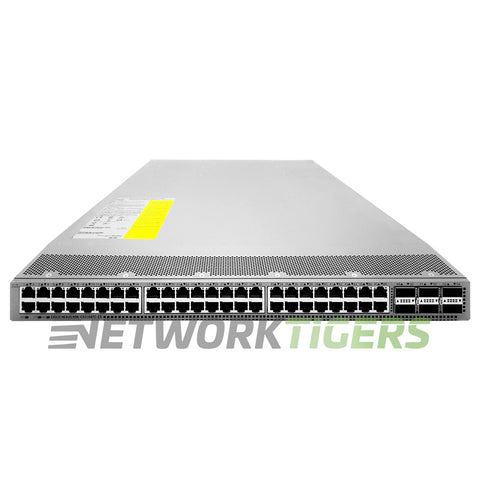

The Cisco N9K-C93108TC-FX3P Nexus 9300-FX3P switch offers 48 multi-gigabit RJ45 ports and six 100GB QSFP28 ports. This allows for high-speed connectivity for data centers, improving overall network performance. The switch is ideal for businesses with a reliable and efficient solution to enhance their networks.

Its versatile port options allow it to connect various devices within the network infrastructure. The Cisco N9K-C93108TC-FX3P ensures seamless communication between connected devices, promoting the smooth operation of business applications.

Cisco N9K-C93108TC-FX3P: Cisco Nexus 9300 with 48p multi-gig 100M/1G/2.5G/5G/10GT & 6p 40/100G


Specifications

  • Network Ports : 48x MultiGigabit Ethernet (100M/1/2.5/5/10GB) UPoE (60W per port) RJ-45
  • Uplink Ports : 6x 100 Gigabit Ethernet QSFP28
  • Management Ports : 1x RJ-45 Management, 1x SFP, 1x USB
  • Maximum number of multicast routes : 128,000
  • Maximum number of IPv4 Longest Prefix Match (LPM) routes : 1,792,000
  • Maximum number of IPv6 Longest Prefix Match (LPM) routes : 896,000
  • VLAN's : 40963
  • Packet Buffer : 40 MB
  • SSD : 128 GB
  • AirFlow Direction : Back-to-Front Airflow (Port Side Exhaust)
  • Fan Module Options : 4x NXA-FAN-35CFM-PE Fan Modules Included - Back-to-Front Airflow
  • Power Supplies Included : 2x NXA-PAC-1100W-PE PSU's Included - Back-to-Front Airflow
  • Power Supply Options : NXA-PAC-1100W-PE, NXA-PAC-1100W-PI, NXA-PAC-1900W-PI, NXA-PAC-930W-PI
  • PoE Budget : Depends on PSU Configuration - 2x 1900W PSU (Non Redundant) = 1920W, 2x 1900W PSU (Redundant) = 1300, 2x 1100W PSUs (Non redundant) = 1600W, 2x 1100W PSUs (Redundant) = 500
  • Switching Capacity : 2.16 Tbps
  • Forwarding Rate : 1.2 Bpps
  • MAC Address Table Size : 512,000
  • CPU : 4 cores
  • System Memory : Default = 16GB, Expandable = 16GB
  • : NOT INCLUDED - Sold separately.
  • Model Number : N9K-C93108TC-FX3P
  • Part Number : N9K-C93108TC-FX3P
  • Condition : New

Datasheet

More information on this Cisco N9K-C93108TC-FX3P.

Included

  • One (1) NEW Cisco N9K-C93108TC-FX3P 48x MultiGB UPoE RJ-45 6x 100GB QSFP28 BF Air Switch as described above
