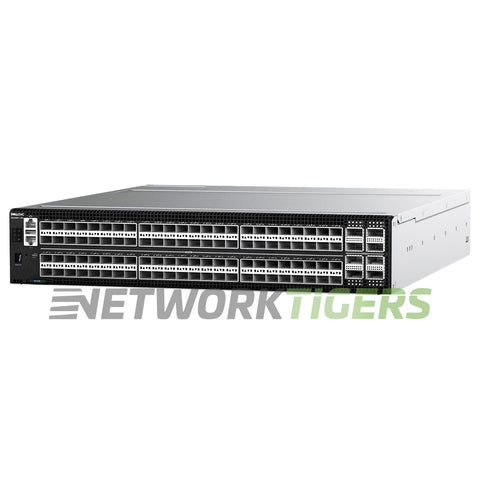

NEW Dell S5296F-ON-RA 96x 25GB SFP28 8x 100GB QSFP28 B-F Air (No OS10) Switch
New

NEW Dell S5296F-ON-RA 96x 25GB SFP28 8x 100GB QSFP28 B-F Air (No OS10) Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-9939
UPC: 011110690487

Overview

The Dell S5296F-ON-RA switch offers high-performance networking with a switching capacity of 3.2Tbps and a forwarding rate of 2.4Bpps, making it suitable for demanding environments.

With an impressive MAC address table size of 160000 entries and low latency at only 850 nanoseconds, this switch ensures efficient data handling. The Dell Switch provides seamless connectivity options for various network setups, featuring 96x 25GB SFP28 ports and 8x 100GB QSFP28 ports.

Dell S5296F-ON-RA 96x 25GB SFP28 8x 100GB QSFP28 B-F Air (No OS10) Switch


Specifications

  • Network Ports : 96x 25 Gigabit Ethernet SFP28
  • Uplink Ports : 8x 100 Gigabit Ethernet QSFP28
  • Management Ports : 1x Gigabit Ethernet Management, 1x RJ45 Management, 1x USB
  • Switch Version : OS10 is NOT included
  • AirFlow Direction : Back-to-Front Airflow (PSU to I/O Panel Airflow / Reversed)
  • Fan Module Options : 4x Fan Modules Included - Back-to-Front Airflow (PSU to I/O Panel Airflow / Reversed)
  • Power Supplies Included : 2x AC PSU's Included - Back-to-Front Airflow (PSU to I/O Panel Airflow / Reversed)
  • Switching Capacity : 3.2 Tbps
  • Forwarding Rate : 2.4 Bpps
  • MAC Address Table Size : 160000 entries
  • Latency : 850 nanoseconds
  • : Not Included - Rail Kit can be purchased separately
  • Model Number : S5296F-ON-RA
  • Part Number : S5296F-ON-RA, S5296F-ON RA
  • Condition : New


Included

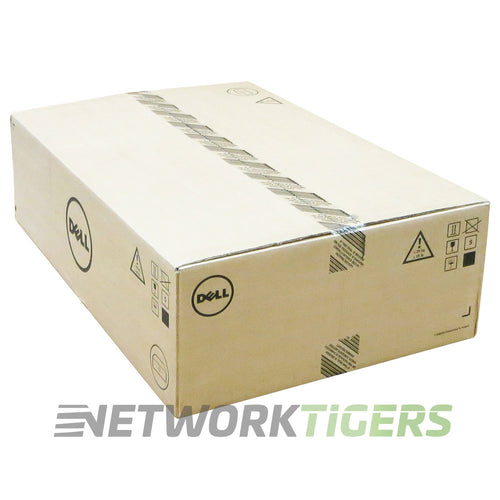

  • One (1) NEW Dell S5296F-ON-RA 96x 25GB SFP28 8x 100GB QSFP28 B-F Air (No OS10) Switch as described above
